CT for batteries | Quality control and R&D

Invisible but critical stakes

Batteries are now at the heart of electric mobility, stationary energy storage and the development of new technologies such as solid-state batteries. Their performance, lifespan and safety depend directly on internal phenomena that are often impossible to observe with conventional inspection methods.

Non-destructive battery analysis

X-ray CT offers a non-destructive approach to inspecting complex, dense or costly components, regardless of their geometry. It enables inspection processes that are faster, safer and more complete than conventional methods.

Explore our CT systems: micro-CT, nano-CT, high-energy CT, custom-made.

CT to meet the challenges of the battery industry

Develop higher-performing batteries

Increase energy density while ensuring safety and lifespan.

Detect hidden defects

Metal contamination, overhang, delamination or assembly defects can appear well before a problem is detected electrically.

Industrialize new generations

Move quickly from lab cell to large-scale production.

Understand aging

Observe degradation mechanisms before they affect performance.

Inside a battery, close-up

Battery CT

inspection fuite batterie grâce à la tomographie

Lithium battery inspection

Why CT in the battery industry?Detect earlier, qualify faster, produce with more confidence

A battery’s critical defects are often invisible to conventional testing. CT gives you a complete view of the internal structure to improve quality, reduce risk and speed up development.

Detect defects before they become a safety risk by identifying metal contamination, delamination or assembly defects.
Reduce production scrap by identifying anomalies earlier in the manufacturing process.
Qualify new chemistries and architectures before industrialization.
Speed up failure analysis without destroying the evidence.
Reduce destructive test campaigns while keeping complete data.
Improve process repeatability through a better understanding of recurring defects.

Unlike electrical tests or 2D inspections, CT lets you visualize the entire internal structure of a battery with no disassembly or destruction. It provides usable 3D data to understand defects, qualify processes and make decisions faster.

They use RX Solutions CT to develop batteries

Accelerating next-generation battery development

Thanks to RX Solutions CT, Helmholtz-Zentrum Berlin analyzes the microstructures and internal phenomena that influence battery performance and lifespan with the UltraTom.

Read the testimonial

Exploring the inside of batteries to accelerate energy storage research

Find out how INSA Lyon uses RX Solutions CT to analyze materials, understand aging mechanisms and develop tomorrow’s energy storage technologies.

Read the article

What CT brings to your battery applications

Deux batteries dans tomographes RX Solutions

Battery pack

Characterize

The microstructure of electrodes, separators and active materials.

Qualify

New chemistries and cell architectures before industrialization.

Detect

Hidden defects before they become a safety risk.

Track

How batteries evolve over charge and discharge cycles.

Understand

The origin of failures, to speed up quality investigations.

For your battery application

Which RX Solutions CT system?

Inspection needs vary widely depending on the battery’s life cycle stage, the level of detail required and the size of the components to analyze. From the study of active materials to the inspection of complete packs, RX Solutions offers several complementary solutions to meet the needs of research, qualification and production.

For electrodes, active materials and next-generation batteries

Nano range lets you analyze microstructures, porosity, tortuosity and the critical interfaces at the heart of cells. It is particularly well suited to R&D on lithium-ion, sodium-ion and solid-state batteries. In a dual-tube configuration with an added microfocus tube, the Nano range can also perform micro-CT.

Discover our NANO CT systems

For composites and mid-size parts

The versatile Explorer range offers the best compromise for inspecting composite structures and assembled parts of intermediate size.
Discover EXPLORER, our micro-CT range

For battery packs and highly absorbing assemblies

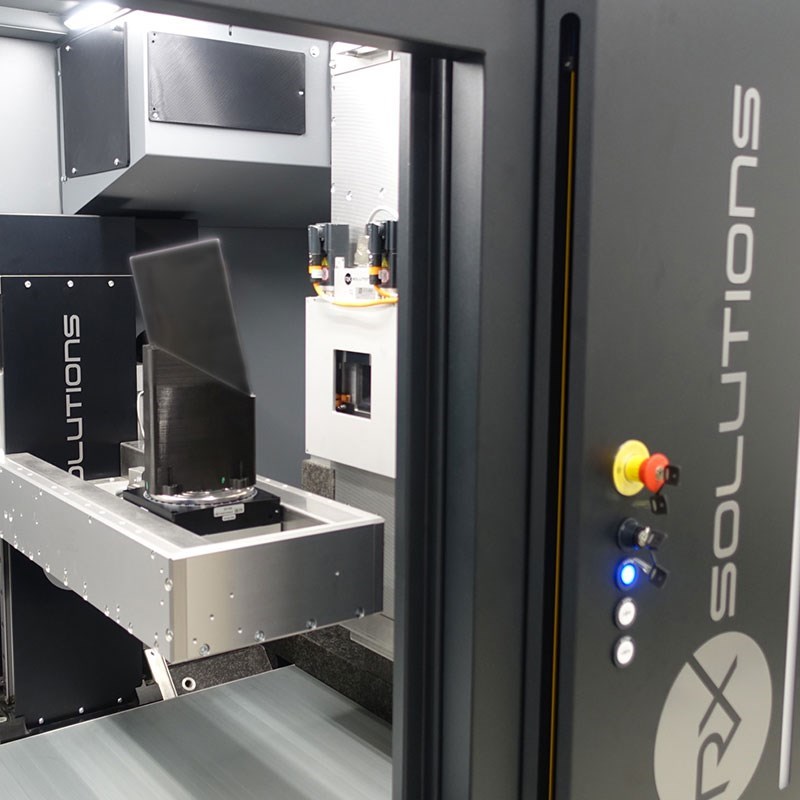

The Force range provides the penetration needed to inspect complete modules, battery packs and systems made of several materials.
Discover FORCE high-energy & high-resolution CT

Contrôle qualité batterie _FAB Series_pour l'inspection_RX Solutions

FAB & Metrology Series

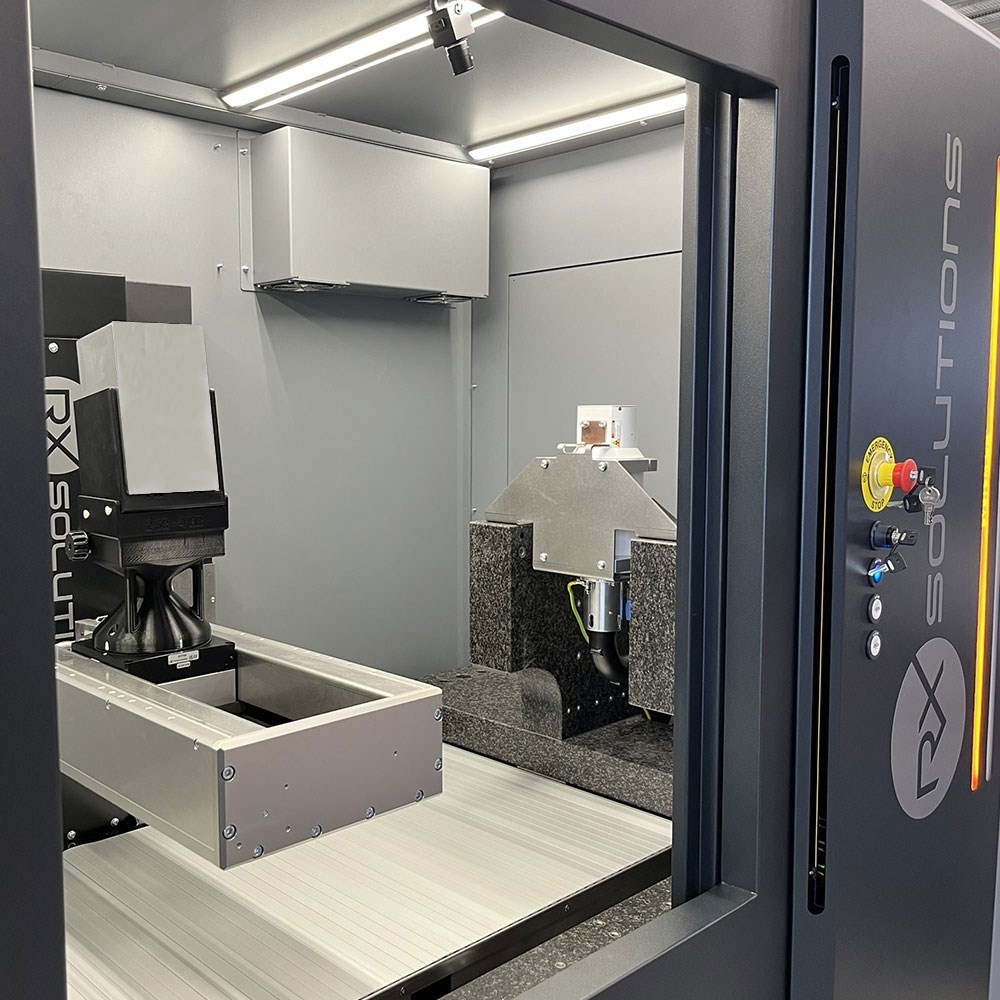

Versions of our CT systems dedicated to production and high-throughput environments

The FAB and Metrology series let you automate inspections, strengthen traceability and perform certified dimensional measurements right in industrial environments. Automated quality control, production qualification, metrology and integration into industrial flows.

FAB Series Metrology Series

Custom-made CT System

Battery requirements that go beyond the standard?

Not every application fits an off-the-shelf configuration. Some batteries call for specific test rigs, advanced in-situ analysis, oversized dimensions or special integration into a research or production environment.

RX Solutions also develops custom solutions for the most demanding needs of the battery sector.

Solid-state batteries and emerging technologies
Experimental setups and specific in-situ tests
Modules and packs beyond standard dimensions
Integration into production lines or automated environments
Configurations dedicated to R&D, qualification or the gigafactory

Discover our custom-made projects Contact us

Need a personalized recommendation?

Tell us about your challenges, your parts, your production or research environment. We’ll run trials on your parts and help you determine which CT system fits your applications.
Is your project confidential? We work under NDA every day.

Name

First name

Company

Business segment

Country *

Phone

E-mail

Message

I agree to subscribe to the newsletter

I accept that the entered information is used in the context of my request and the trade relation which may ensue.
To know and exercise your rights, especially to revoke your consent to use the data collected on this form, please read our Privacy Policy.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Send

The analyses that move your battery projects forward

CT is about more than revealing a battery’s internal defects. From materials research to gigafactory production, CT provides usable data to understand degradation mechanisms, qualify new technologies, improve manufacturing processes at every stage of the life cycle and analyze failures.

comportement matériaux actifs_analyse tomographie

Understand how active materials behave

A battery’s performance depends directly on the internal organization of electrodes, separators and active materials. CT lets you observe and characterize these structures to better understand the mechanisms that influence capacity, lifespan and safety.

analysis of electrode microstructure;
characterization of porosity and tortuosity;
distribution of active materials;
understanding of aging mechanisms.

Batterie avant industrialisation dans tomographe

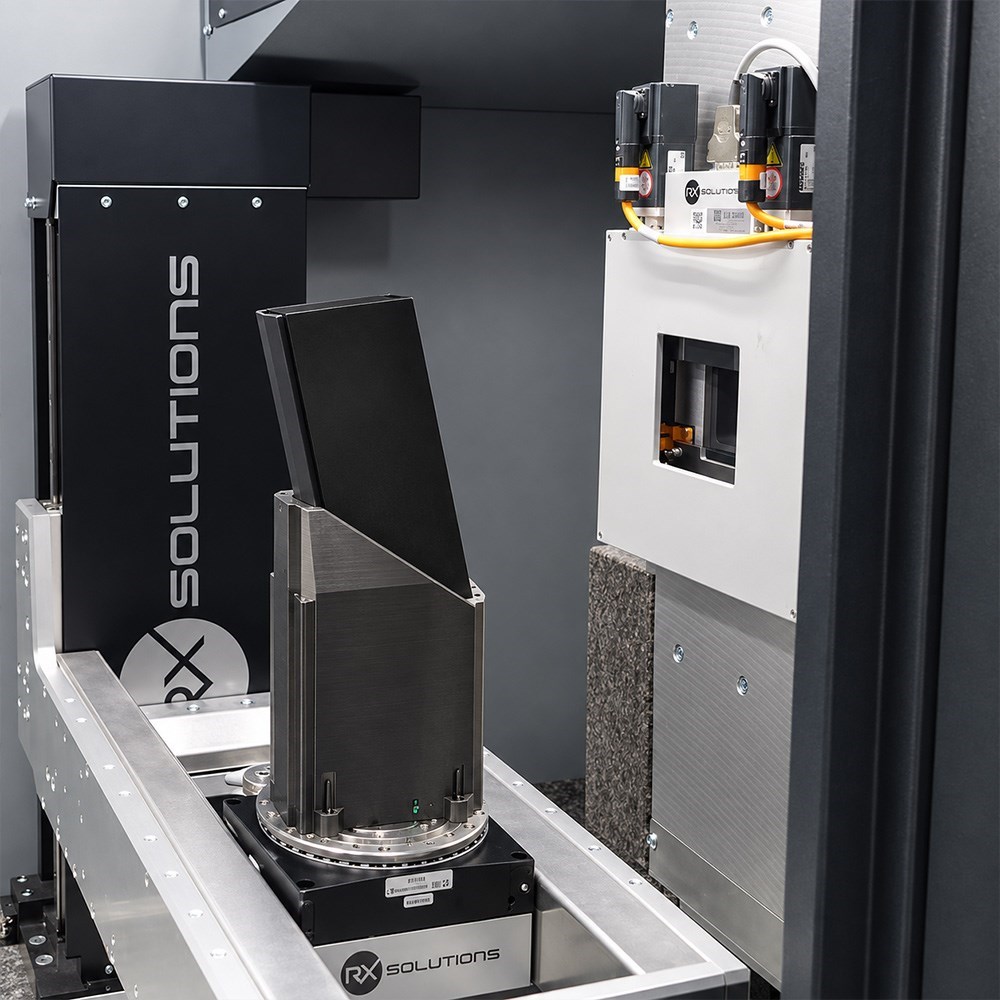

Qualify cells before industrialization

Before moving to large-scale production, cells must be validated to detect defects that could affect their performance or safety.

detection of metal contamination;
inspection of alignment defects (overhang);
validation of new cell architectures;
qualification of assembly processes;
weld inspection.

Speed up failure analysis

CT quickly shows where a problem comes from, without destroying the sample. R&D, quality and industrialization teams get usable data that cuts investigation time.

localization of internal defects;
post-mortem analyses;
comparison of conforming and failed cells;
root cause identification.

Suivi in-situ vieillissement dans tomographe

Track aging under real conditions

Thanks to in-situ studies and 4D imaging, it becomes possible to observe how materials evolve over charge and discharge cycles.

monitoring of cell swelling;
evolution of internal structures;
observation of degradation mechanisms;
qualification of new battery generations.

Contrôle qualité tomographie, usine de batterie, ia

Use data to improve production

CT data helps you better understand recurring defects and optimize manufacturing processes for higher quality and repeatability.

improvement of manufacturing processes;
scrap reduction;
qualification of production lines;
securing of production ramp-ups.

Want to understand the origin of a defect, qualify a new cell or accelerate your battery development?

Have your part analyzed

Why choose RX Solutions for your battery applications?

From research labs to electric vehicle manufacturers, RX Solutions supports e-mobility players in the analysis, qualification and quality control of the most critical components.

From the electrode to the complete pack: multi-scale analysis suited to every stage of the battery life cycle, thanks to our range of CT systems and dual-tube configurations.
In-situ and 4D: understand aging mechanisms as they develop. Read about the potential of 4D CT.
Horus and advanced reconstruction: more usable data on complex structures.
A scalable platform: your CT system can benefit from upgrades for your projects.
Non-standard projects: solutions tailored to your most specific constraints.

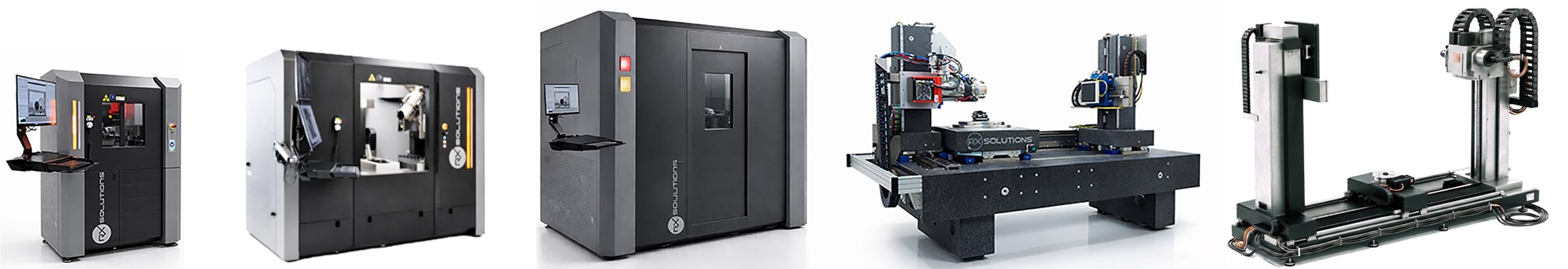

Our CT systems: a wide choice of configurations to suit your needs.

Battery CT FAQ

Can a battery be inspected without disassembling it?

Yes. CT lets you analyze the inside of a cell, module or battery pack with no disassembly or destruction. It reveals the internal structure of components and identifies defects that an external inspection can’t see.

What defects can be detected in a battery?

How can metal contamination be detected in a battery?

What is an overhang defect?

Can battery aging be tracked over time?

Can a complete module or battery pack be inspected?

Can a solid-state battery be qualified with CT?

Is CT only used in the lab?

Which RX Solutions solution should I choose for a battery application?

What return on investment can I expect from a battery CT system?

Can battery quality control be automated?

A battery project to qualify?

Active material analysis, solid-state batteries, cell quality control or full pack inspection: let’s talk about your performance, safety and industrialization goals to identify the configuration best suited to your application.
