FAB Series - CT system for production

CT suited to production environments


FAB Series is an industrial CT solution designed for the shopfloor: robust hardware, end-to-end automation and software built for operators, connected to the factory via OPC UA.

Industrial CT was long reserved for laboratories and R&D, used by experts in controlled environments. Yet X-rays and, more broadly, non-destructive testing technology are among the best solutions for inspecting complex parts and guaranteeing quality throughout the production cycle.

On the shopfloor, the reality is different: dust, vibration, sustained production rates, non-specialist operators and very high availability requirements, where every stoppage has a direct impact on production and costs.

FAB Series answers this reality. Robust hardware, automated flows, full traceability and native communication with MES (manufacturing execution systems), robots and supervision systems: CT becomes reliable and usable day to day, to reduce scrap, speed up decisions and optimise return on investment. See also our approach to inspection on the production shopfloor.

FAB Series: which industrial uses?

FAB Series is aimed at industries where production quality, traceability and availability are critical and where the parts to be inspected are often complex or high-value: critical parts, turbines and composites, engines, batteries and injection-moulded parts, implants, devices and prostheses, and components from many other industries, inspected non-destructively, as close as possible to production.

By bringing CT onto the shopfloor, FAB Series helps manufacturers secure their in-house inspections, stabilise quality and document every inspection, at the pace of production.

FAB Series a CT system designed for the production shopfloor

Designed for demanding environments, FAB Series turns industrial CT into a genuine production tool. Its robust CT systems keep working despite dust, oil, vibration and multi-shift production rates. Workflows can be fully automated, from acquisition to the OK/NOK decision, with a simplified operator interface accessible to non-specialists.

It is built on SoftProd, a bespoke production software interface, on automatic analysis by VisionAI and on native integration with the factory via OPC UA: more availability, more throughput, more stable quality and full traceability of inspections. Production-orientated services (application start-up, advanced monitoring, Heavy Duty maintenance contracts secure commissioning and system availability.
FAB Series - CT systems for production

Uptime & stability

In production, every stoppage means lost throughput and risks to quality. FAB Series is designed to deliver high availability and stable performance over time, in the heart of a workshop.

  • Sealed tubes: designed for production, the sealed tubes (150 and 225 kV) reduce interventions and deliver more stable performance over time. They limit maintenance and secure day-to-day availability.

  • Advanced monitoring: tracks the condition of critical components, detects drift and the age of sensitive parts, and makes it possible to anticipate maintenance and plan stoppages.

  • IP54 protection and reinforcements: key components are protected to IP54, to withstand dust, splashes and workshop conditions.

  • Beam shutter: avoids ON/OFF cycles at every loading. The X-rays remain stable between two scans, which reduces cycle times, stabilises the beam and extends the life of the X-ray generator.

  • LiDAR protection: actively prevents collisions inside the CT system. It protects the tube, the detector and the inspected parts, without complex setup.
FAB Series -CT systems for production

Throughput & automation

Industrialising CT inspection means increasing the number of parts inspected while reducing manual handling. FAB Series automates the flow from end to end and runs 24/7.

  • End-to-end automated workflow: from acquisition to reconstruction, from analysis to the report. Parameters are loaded automatically, actions are run in parallel and the equipment can operate autonomously, even without an operator.

  • Automated internal loading: runs several parts in sequence without human intervention and handles different formats and sample-specific parameters, while remaining ergonomic and safe for operators. The CT system can run at night and at weekends.

  • Robotised auto-loading module: automates loading and unloading. It stores and feeds up to 300 parts, handles different sizes and weights (up to 80 kg, 150 kg as an option) and serves one or two CT systems from the same module. Automatic part identification tracks inspections and eases integration with the MES or quality systems.
FAB Series - CT System for production

Simplified operator interface

FAB Series is designed for day-to-day use by production operators, not only CT specialists: simple, safe, repeatable inspection, with less training and less dependence on a few experts.

  • Clear human–machine interface (HMI) and user roles: the HMI is uncluttered and suited to the shopfloor. Operators access only the functions they need; sensitive actions are reserved for “expert” or “maintenance” profiles through access rights. An integrated barcode reader limits input errors and automatically selects the right inspection parameters.

  • One-click preconfigured workflows: acquisition, reconstruction, analysis and, if needed, report generation. Recipes are standardised for each part reference, for repeatable execution from one workstation and one team to the next.

  • VisionAI: objective OK/NOK decisions: CT image analysis is automated and OK/NOK decisions become fast, objective and consistent. AI reduces bias due to fatigue or interpretation, improves the detection of subtle defects and maintains the same level of judgement whatever the workload or team.
FAB Series - CT system for production

Industry 4.0 connectivity

FAB Series fits into the factory’s digital ecosystem. Production and quality data are collected, structured and shared automatically for full traceability. The variables exchanged can be aligned with the customer’s workflow, to evolve at the pace of new references or new analysis modules.

  • OPC UA: connection to MES, supervision, IIoT (Industrial Internet of Things) platforms and robotised loading and unloading cells.

  • Automatic production logs: production events and operator actions are recorded (scans, machine status, cycle times, errors), for full traceability and simplified audits.

  • Standardised data formats: compatible with reporting tools and industrial information systems.

Download the brochure



Discuss my production needs


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Send

FAB SeriesWhich CT platform for your application?

FAB Series equips the Explorer line. Four platforms are currently compatible: the EasyTom S (150 kV), and the EasyTom L, XL and B (225 kV).

They let you customise your CT system to your constraints: space available on the shopfloor, size and weight of the parts to be inspected, target production rate. CT inspection is thus integrated as close as possible to your lines, with no compromise on robustness or performance.
Product lines
EXPLORER
NANO
FORCE
Platforms
EasyTom S
EasyTom L
EasyTom XL
EasyTom B
EasyTom L
EasyTom XL
UltraTom
EasyTom L
EasyTom B
Series
Metrology Series



Fab Series





Performance
Resolution









Sample density









EXPLORER EasyTom S
Series
Metrology Series
Fab Series
Performance
Resolution
Sample density
EXPLORER EasyTom L
Series
Metrology Series
Fab Series
Performance
Resolution
Sample density
EXPLORER EasyTom XL
Series
Metrology Series  —
Fab Series
Performance
Resolution
Sample density
EXPLORER EasyTom B
Series
Metrology Series  —
Fab Series  —
Performance
Resolution
Sample density
NANO EasyTom L
Series
Metrology Series
Fab Series  —
Performance
Resolution
Sample density
NANO EasyTom XL
Series
Metrology Series  —
Fab Series  —
Performance
Resolution
Sample density
NANO UltraTom
Series
Metrology Series
Fab Series  —
Performance
Resolution
Sample density
FORCE EasyTom L
Series
Metrology Series
Fab Series  —
Performance
Resolution
Sample density
FORCE EasyTom B
Series
Metrology Series
Fab Series  —
Performance
Resolution
Sample density
EasyTom S - 150 kV
EasyTom S - 150 kV
EasyTom L - 225 kV
EasyTom L - 225 kV
EasyTom XL - 225 kV
EasyTom XL - 225 kV
EasyTom B - 225 kV
EasyTom B - 225 kV
EasyTom S - 150 kV
N° of axes: 4+2 (centring stage in option)
Max SSD: 612 mm
Max scan volume: Ø 230 mm x H 380 mm
Max resolution: 5 µm

Sample
Max sample size: Ø 300 mm x 410 mm
Max sample weight: 5 kg
Internal loader 6: Ø 45 mm x H 155 mm
Internal loader 3: Ø 175 x H 155 mm

General
Weight: 1020 kg
Dimensions: 1345(W) x 900(D) x 1870(H) mm
×
EasyTom L - 225 kV
N° of axes: 6+2* (*centring stage in option)
Max SSD: 1015 mm
Max scan volume: Ø 500 mm x H 580 mm
Max resolution: 40 µm

Sample
Max sample size: Ø 685 mm x 900 mm
Max sample weight: 30 - 80 kg
Sample loader 6: Ø 70 mm x H 220 mm
Sample loader 3: Ø 120 x H 220 mm

General
Weight: 3700 kg - 5850 kg
Dimensions: 2400 (W) × 1200 (D) × 2000 (H) mm
×
EasyTom XL - 225 kV
N° of axes: 7+2* (*platine de centrage en option)
Max SSD: 1400 mm
Max scan volume: Ø 640 mm x H 940 mm
Max resolution: 40 µm

Sample
Max sample size: Ø 1100 mm x 1000 mm
Max sample weight:  100 kg
Internal loader 10: Ø 90 mm x H 270 mm

General
Weight: 4450 - 7400 kg
Dimensions: 2860 (W) × 1850 (D) × 2400 (H) mm
×

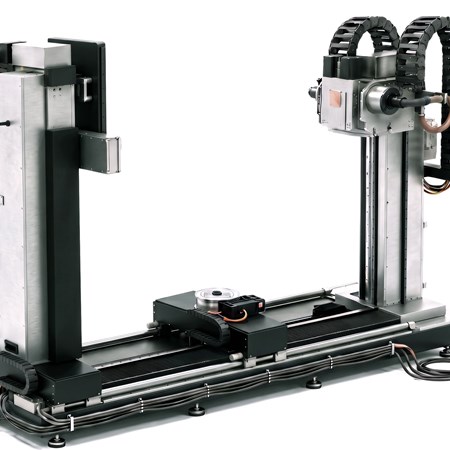

EasyTom B - 225 kV
