easytom

The RX Solutions EasyTom is a powerful CT System designed to address the most challenging 3D applications ranging from material research to industrial applications in R&D, quality assurance and production. With its large scanning volume but compact footprint, it is possible to visualize, measure and analyze, with high resolution, large components or assemblies, up to 320 mm in diameter and 530 mm in height.

No compromise: Combine High-Resolution Micro & Nano X-ray Computed Tomography

With an ultimate resolution down to 0.4 µm and multiple generators & detectors choices, EasyTom gives sharp details and the balanced contrast and brightness needed for high quality imaging even at low energy.

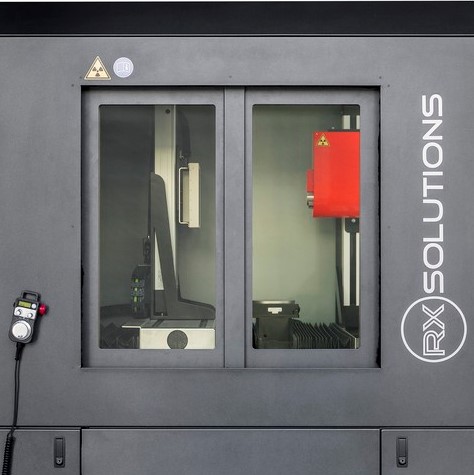

Flexible X-ray solution

Thanks to the large wide doors opening, the system facilitates easy access to the rotation stage and optimizes the sample positioning. The 9 motion axes allow easier positioning of parts as well as the ability to scan samples of up to 30kg weight. This greater flexibility of parts positioning and adjustable distance between the source and the detector, leads to easier, faster and higher quality acquisitions.

A powerful X-ray software

Proprietary "X-Act" software delivers powerful results and breakthrough image quality across the entire RX Solutions' range of CT Systems. EasyTom integrates the full featured “X-Act” software suite, that streamlines acquisition, enhances reconstruction with advanced corrective algorithms, and is capable of fully automated workflow all the way through scanning, reconstruction, and inspection steps.
