RX Solutions unveils the EasyTom L 450

10 Jul 2025
Previous article
Next article

EasyTom L 450

The compact 450 kV CT system for inspecting dense parts


RX Solutions is expanding its line of high-energy CT systems with the EasyTom L 450, the first compact system to combine a 450 kV meso-focus source (40 µm resolution) and a 150 kV micro-focus source (4 µm resolution).

Designed for tomography of dense parts, particularly metallic ones, or complex assemblies while retaining high-resolution capability for inspecting fine details, the EasyTom L 450 offers laboratories and manufacturers unprecedented flexibility. This CT system brings high energy to laboratories and workshops, in only 2.9 m² of floor space, and is particularly easy to install.



High energy kV ● High resolution ● Compact CT system

450 kV

High energy

40 µm

Resolution (450 kV generator)

Double

Meso & Micro Configuration

2,9 m²

Footprint

7 t

Weight under

High energy and high resolution

At the heart of the EasyTom L 450 is a 450 kV meso-focus generator, designed to meet the inspection challenges of dense components made of steel, nickel, copper, or titanium or special alloys, or multi-material parts, often used in the aerospace, automotive, additive manufacturing, or foundry sectors.
With spatial resolution down to 40 µm, the EasyTom L 450 reveals the internal structures of high-density parts such as alloy turbine blades, battery modules, or assembled housings.

For parts requiring more detail, the system can be equipped with a second micro-focus generator, mounted on the same axis. Switching from one tube to the other happens instantly with a mouse click. This dual-source capability enables multi-scale inspections in a single system, optimizing both time and image quality.

Roland Le Floch product manager

“Combining high energy 450 kV and high resolution, the EasyTom L 450 is the ideal tool to support the development of vehicle electrification, both for inspecting batteries and for motors or power boards.

It is also a valuable ally for verifying or optimizing the production of high-value-added parts made by metal additive manufacturing, for which studies show that tomography is the most effective non-destructive testing tool.

Having been able to integrate this technology into such a compact, easy-to-install cabinet improves the accessibility of high-energy, high-resolution X-ray tomography for manufacturers and laboratories,” says an enthusiastic Roland Le Floc’h, product manager at RX Solutions.

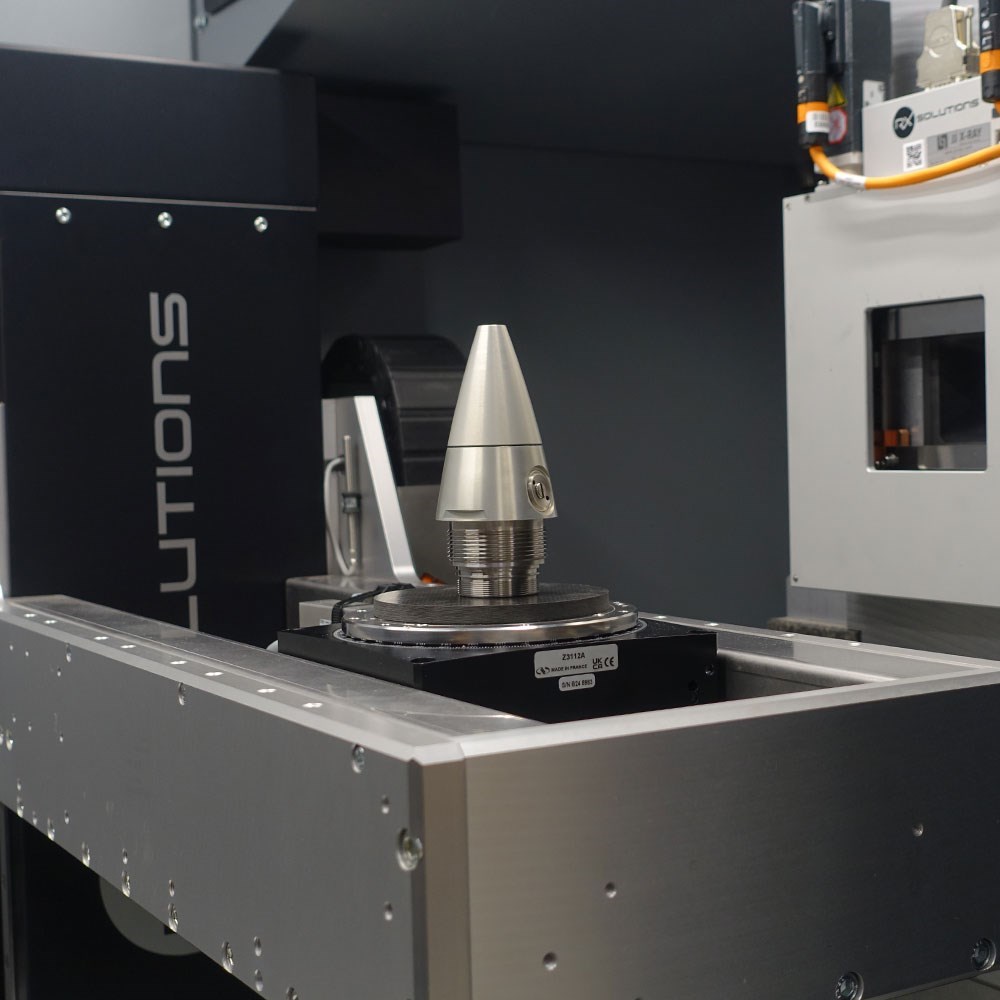

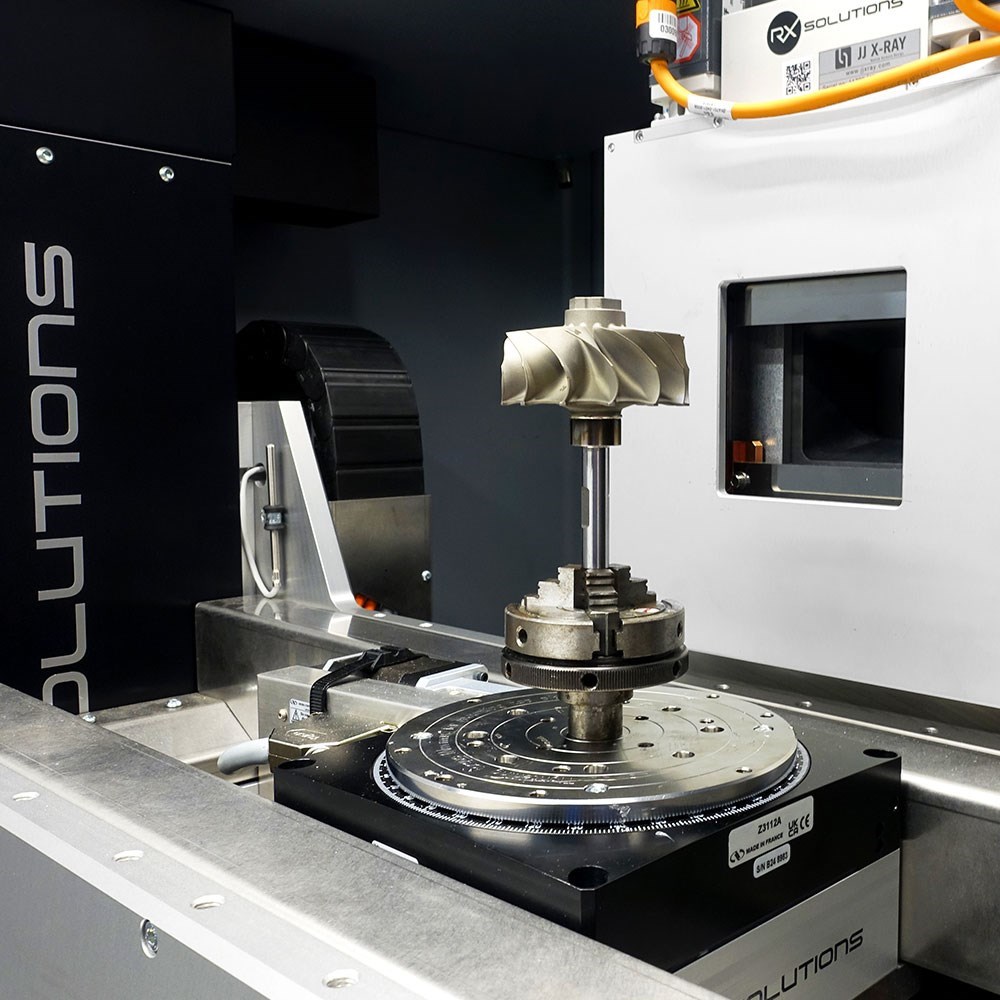

High energy CT system

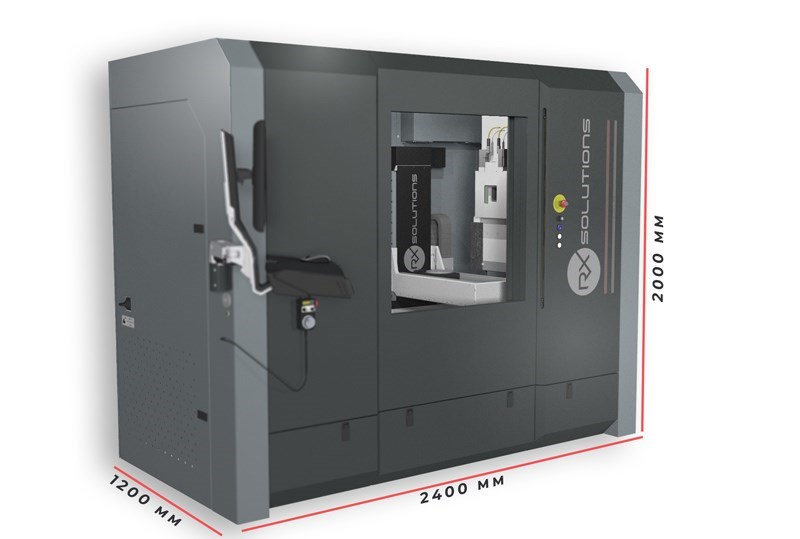

High energy, compact footprint

While most 450 kV tomographs require custom-built bunkers, reinforced foundations, and heavy infrastructure, the EasyTom L 450 was designed with accessibility in mind:

  • 2.9 m² of floor footprint
  • Total weight < 7 tonnes
  • Fits through standard double doors
  • Ready-to-use operation
  • Source-detector distance variable by 1430 mm for geometric magnification and optimized resolution.

It is therefore the ideal choice for facilities that want to move to high-energy computed tomography without the logistical and financial burden generally associated with such power.

High energy CT system

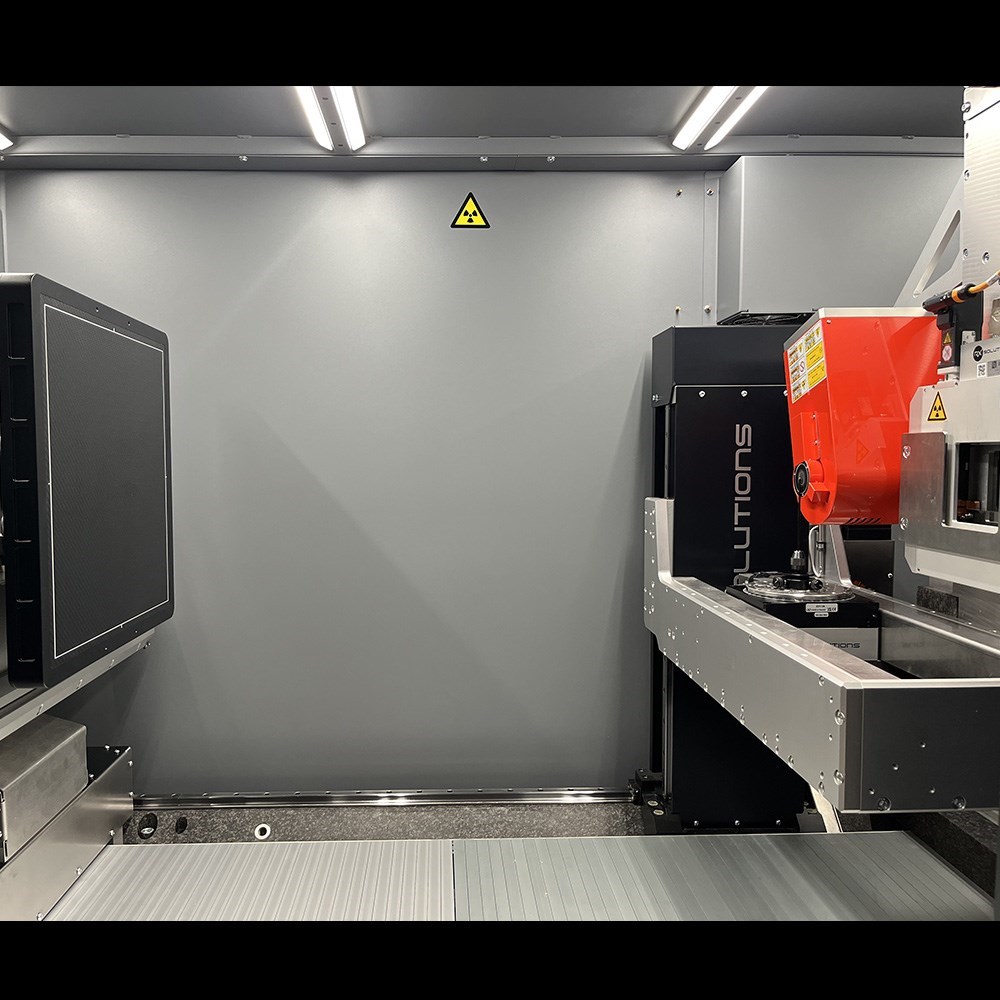

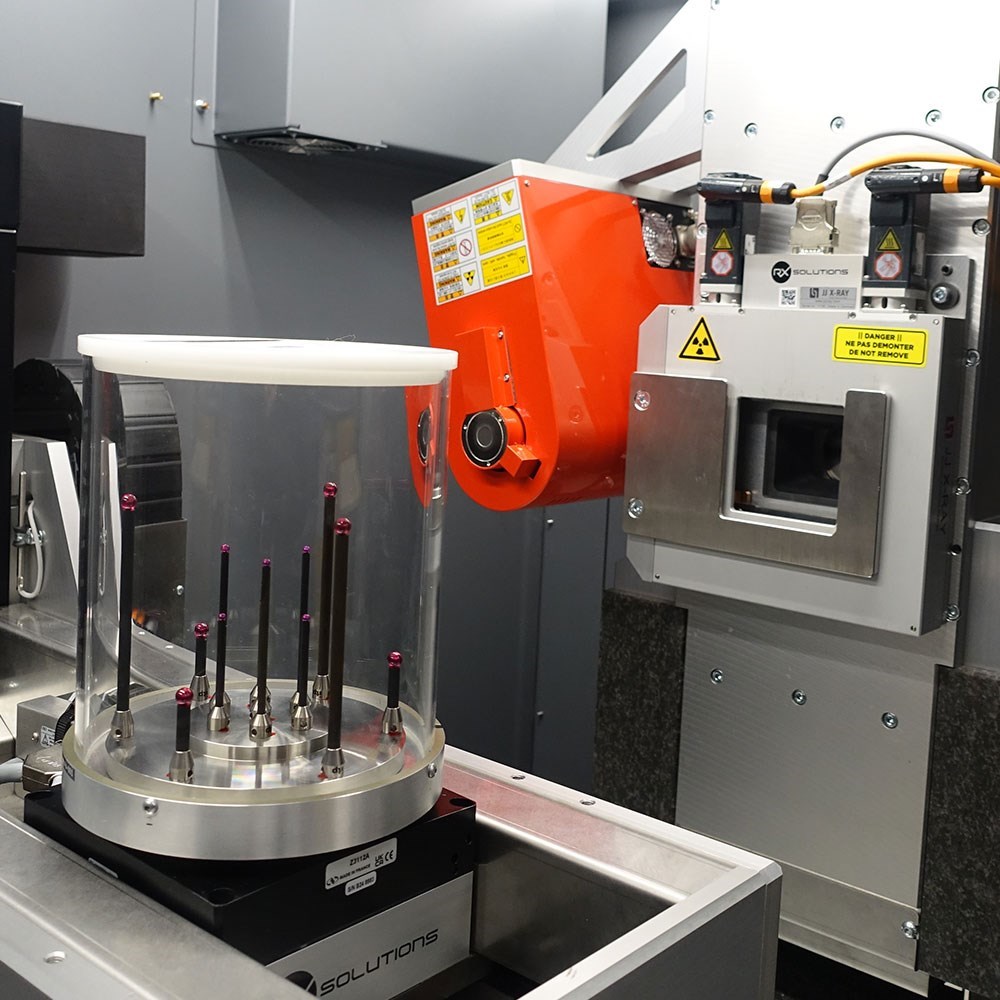

Dual detector and dual tube on the Easy Tom L 450

Expand your inspection capabilities

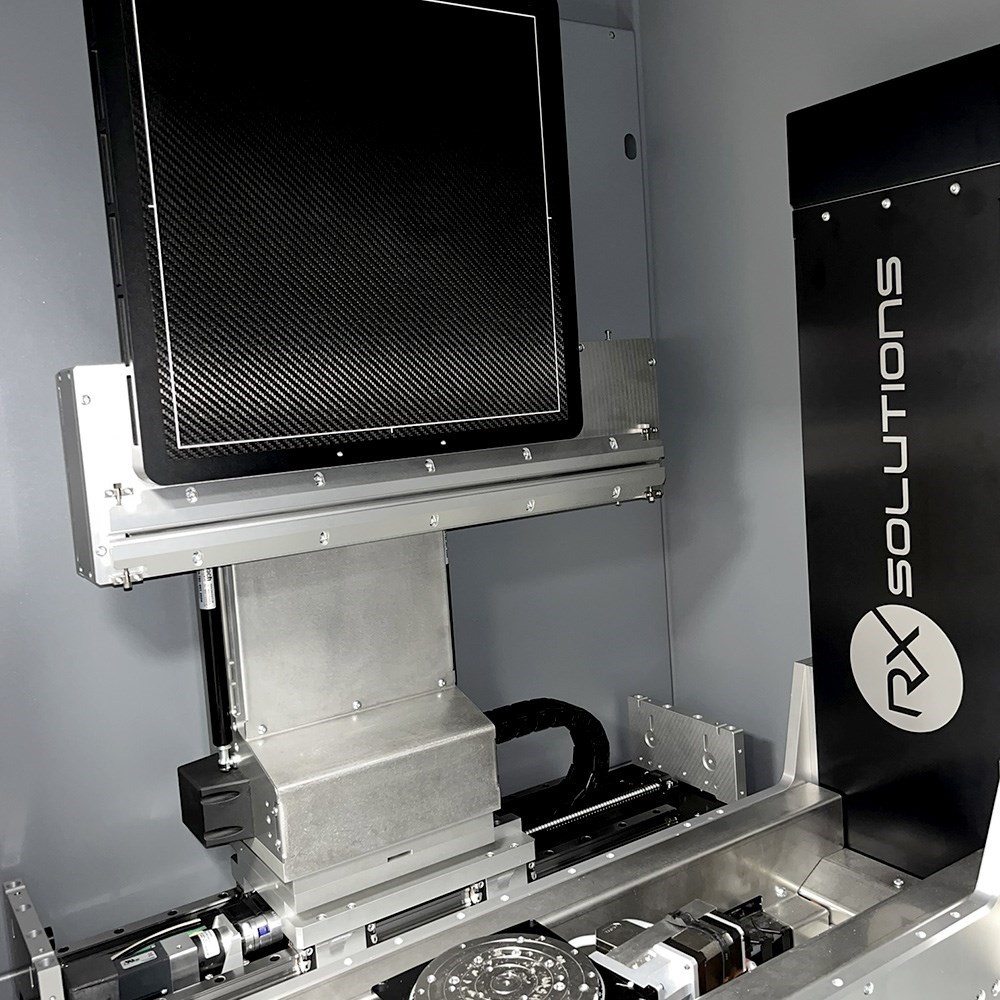

The EasyTom L 450 is equipped with a large flat-panel detector, and for demanding applications it can be supplemented with a specially optimized linear detector. (see photo)

For ultra-precise inspection, switch from the flat-panel detector to the linear detector with a single click and benefit from sharper images, optimized contrast, and greatly reduced scatter artifacts.

Whether you are validating R&D processes or production batches, analyzing failure modes, or performing quality control, the EasyTom L 450’s acquisition and reconstruction chain is designed for speed.

In parallel, a library of automation tools, from macros to API scripts, gives users control of batch routines, report exports, and connectivity. The built-in OPC-UA industrial communication protocol also allows seamless integration into smart factory environments, or interfacing with robotic loading solutions, for example.

New processing algorithms complement this configuration and deliver unmatched image quality on parts previously considered difficult to image.
Dual detector and dual tube on the Easy Tom L 450

Suited to industrial requirements

The EasyTom L 450 was specially designed to meet the rigorous demands of industrial environments, laboratories, and R&D centers seeking the performance of high energy with no compromise.

The EasyTom L 450 features a vibration-free, granite-based architecture and is supported by X-Act, RX Solutions’ proprietary reconstruction software. The latter delivers robust, high-throughput CT performance with repeatable accuracy, even on the heaviest and most complex samples.

The CT system supports:

  • Samples up to Ø 485 × 585 mm
  • Stage load up to 30 kg (80 kg option possible)
  • Robotic or manual loading flow
  • Scan routines without operator intervention

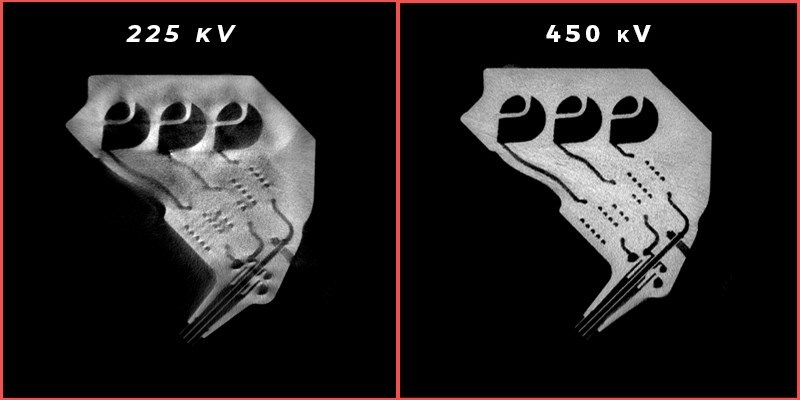

Rendering comparison: 225 kV vs. 450 kV

Rendering comparison: 225 kV vs. 450 kV

The essentials of the EasyTom L 450 kV, a compact high-energy system

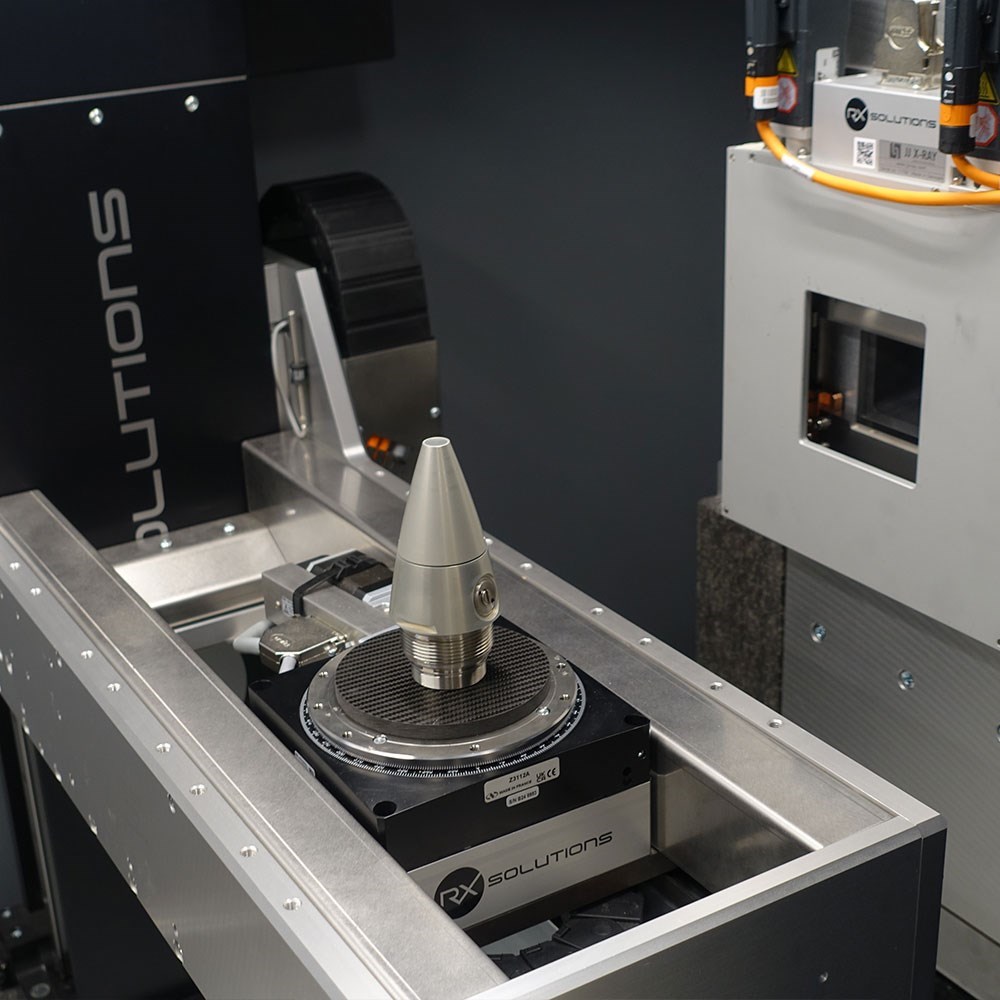

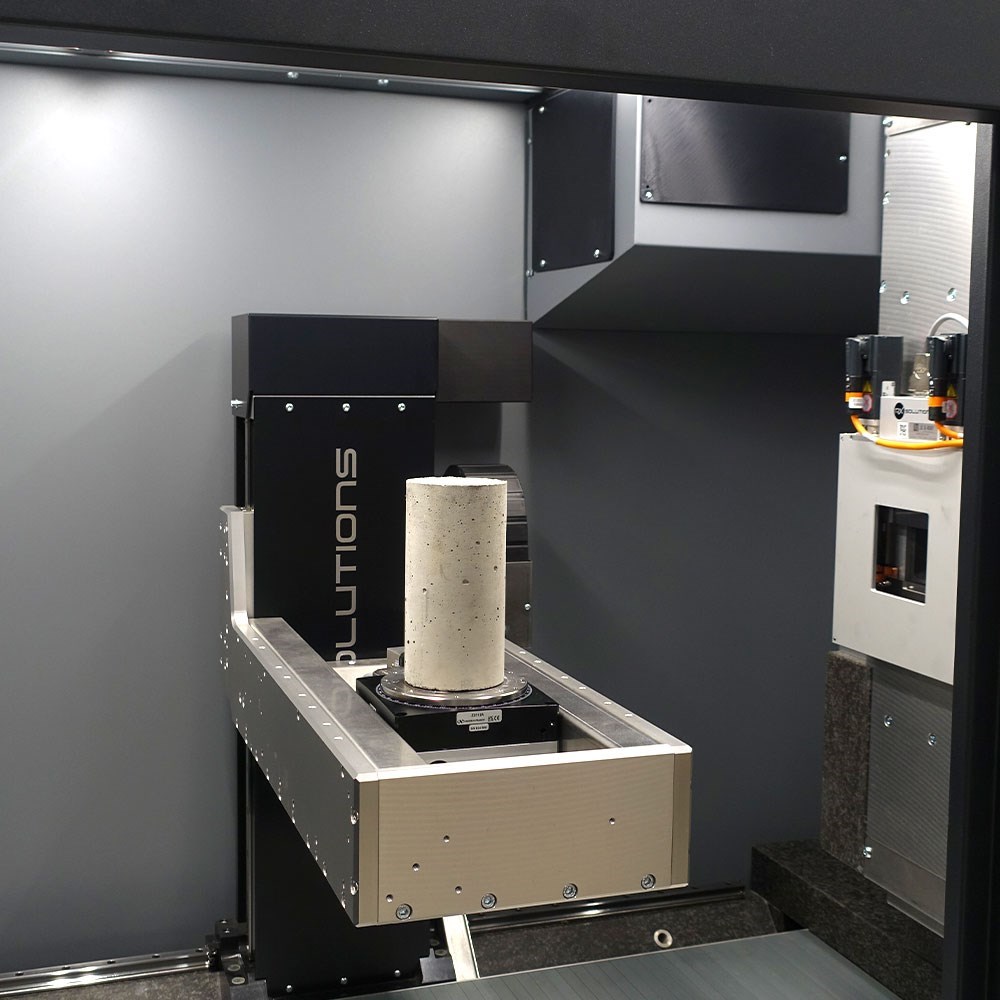

Dense parts
Dense parts

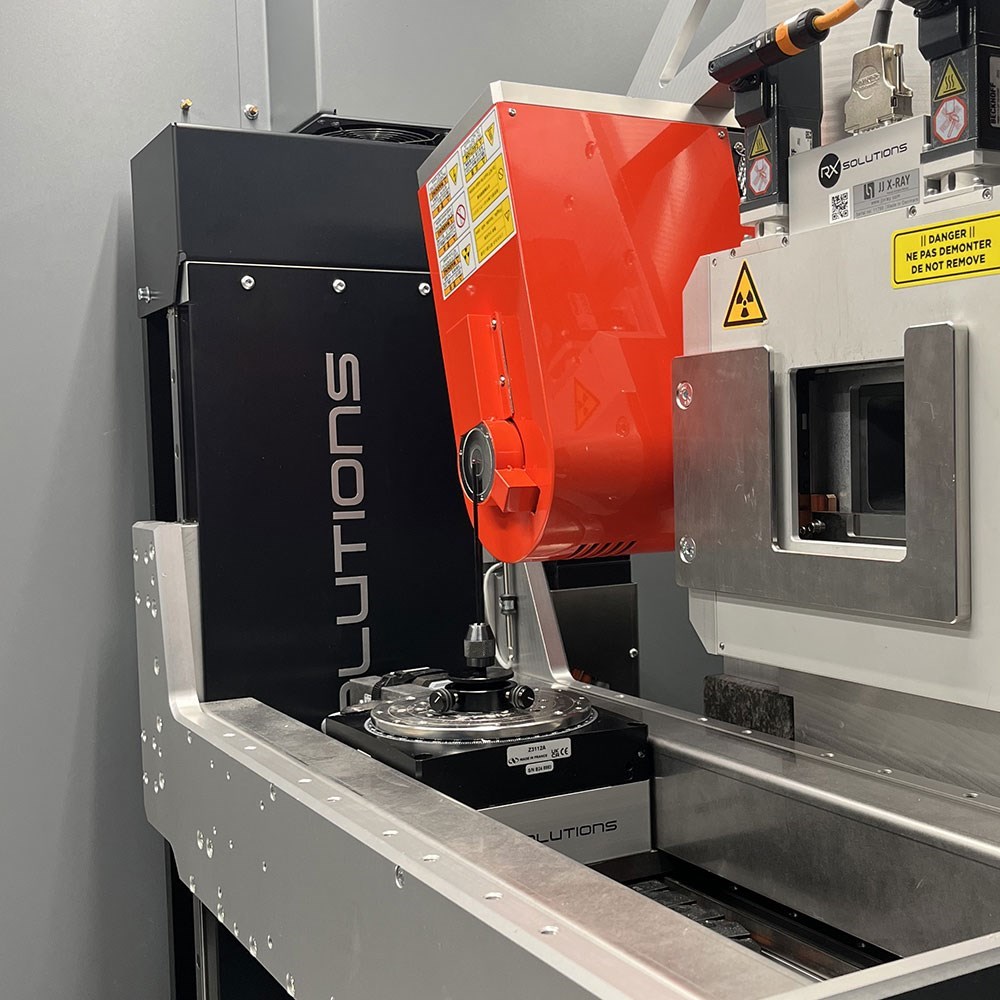

Dual generator
Dual generator

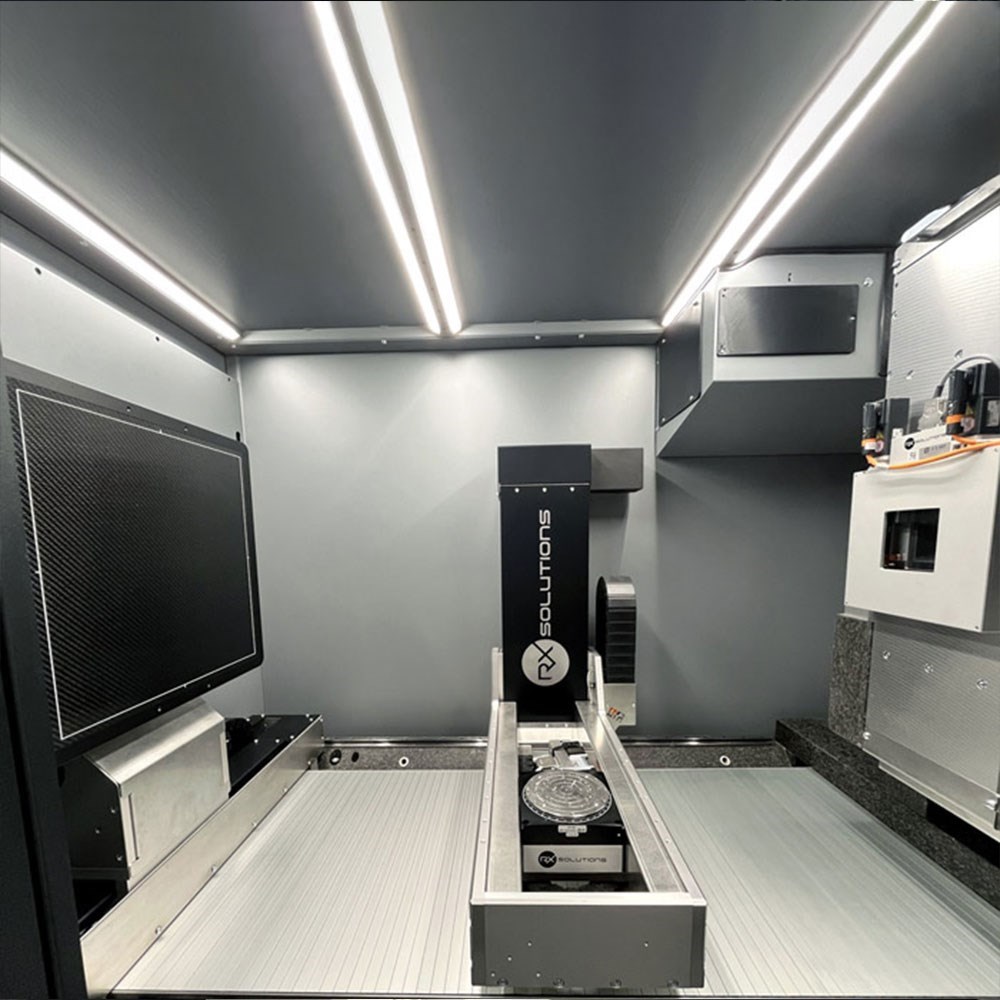

Large-format detector
Large-format detector

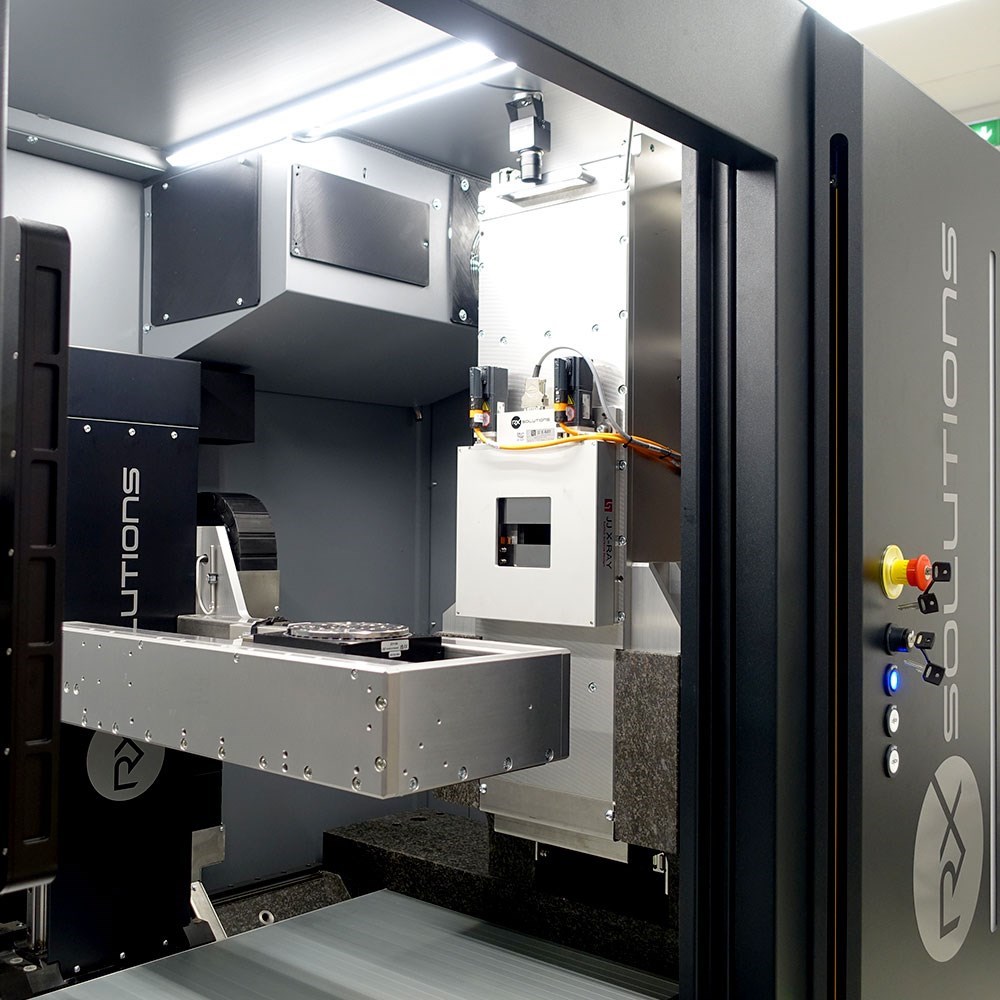

2.9 m² of floor space, total weight under 7 tonnes
2.9 m² of floor space, total weight under 7 tonnes
Electronic component inspected with Force high-energy tomography Additively manufactured titanium injector

FORCE

High-energy solution

4 µm RESOLUTION
450 kV SOURCE VOLTAGE
67 mm Fe Penetration

See through the densest materials.

Inspect thick metal parts, complex assemblies and highly absorbent components with optimal image quality.

Platforms Easytom L · Easytom B

Delivering usable 3D data for inspecting difficult parts


The EasyTom L 450 is part of RX Solutions’ Force line of tomographs. A line characterized by high energy, its modularity, advanced reconstruction possibilities, and its industrial integration.
