x-ray software
x-act



Powerful, Advanced and Intuitive software

Take the guesswork out with accurate results for your parts in 2D Radiography and 3D Tomography. Simply inspect your parts’ structural and dimensional aspects, fast and in detail.



X-Act
All-in-one software

Everything is combined in a single X-ray software, from the set-up to the CT scans' 3D rendering

The X-Act software has a full interface for inspecting your samples precisely. It is more than just an acquisition and reconstruction X-ray software, it is also an advanced solution with a wide range of scanning strategies that provide the best possible outcomes, regardless of your application.

Greater user experience comes with greater power


  • X-Act is a very powerful tool to adapt to every user profile and need. Simple, intuitive and user-friendly, the X-ray technology is made accessible to any user - from the expert to the beginner. X-Act, as an all-in-one solution, carries out three user modes: X-Act Expert, Guided acquisition (step-by-step guide with suggested settings) and Wizard mode (fully automated for less effort).

One x-ray software
multiple benefits

Fast and accurate results

RX Solutions X-Act software offers inspection and analysis of the sample in detail. Whatever the material of your sample, you will get precise results and detect even the smallest details.

Three user modes

X-Act is developed to adapt to any user profile. Regardless of your knowledge, whether you are an expert or a beginner, there is a user mode for you (X-Act Expert, Guided acquisition, Wizard mode) to obtain results of the highest quality.

Multiple scanning strategies

Delivered with an incredible number of functionalities, X-Act enables you to set the perfect parameters for the scanning process, for any kind of sample. X-Act allows multiple scanning strategies, from conventional CT scan mode to multiple advanced acquisitions capabilities, such as helical, stack, shift, laminography, limited angles, Region of interest zooming, Dynamic 4D CT…

Fast return on investment

X-Act is included with the purchase of any of our CT systems. The software has been programmed to easily be operated for our hardware developments, designed to reduce costs and be as a very long-lasting investment.

Fast and accurate results

RX Solutions X-Act software offers inspection and analysis of the sample in detail. Whatever the material of your sample, you will get precise results and detect even the smallest details.

Three user modes

X-Act is developed to adapt to any user profile. Regardless of your knowledge, whether you are an expert or a beginner, there is a user mode for you (X-Act Expert, Guided acquisition, Wizard mode) to obtain results of the highest quality.

Multiple scanning strategies

Delivered with an incredible number of functionalities, X-Act enables you to set the perfect parameters for the scanning process, for any kind of sample. X-Act allows multiple scanning strategies, from conventional CT scan mode to multiple advanced acquisitions capabilities, such as helical, stack, shift, laminography, limited angles, Region of interest zooming, Dynamic 4D CT…

Fast return on investment

X-Act is included with the purchase of any of our CT systems. The software has been programmed to easily be operated for our hardware developments, designed to reduce costs and be as a very long-lasting investment.


X-Act : A powerful x-ray software
radiography, acquisition & reconstruction

Radiography

Live inspection


Radiography is quick and easy with X-Act. Software filters are included to improve sharpness and contrast.  3D measurements can be taken directly on the  radio.



Acquisition

Data acquisition



The workpiece previously positioned in the equipment rotates through 360°. During this rotation, a set of radio projections are acquired at different angles.



Reconstruction

Data processing



All the projections made during the acquisition step are reconstructed as a 3D volume. The volume thus generated will serve as the basis for the optional third step: post-processing.










X-act CT reconstruction
Advanced artefacts corrections

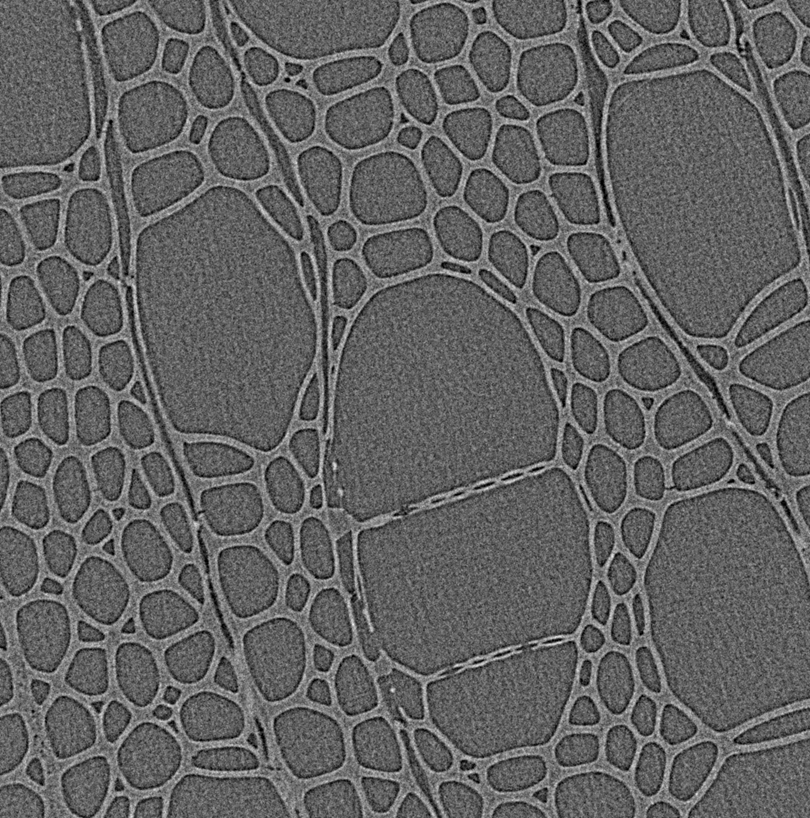

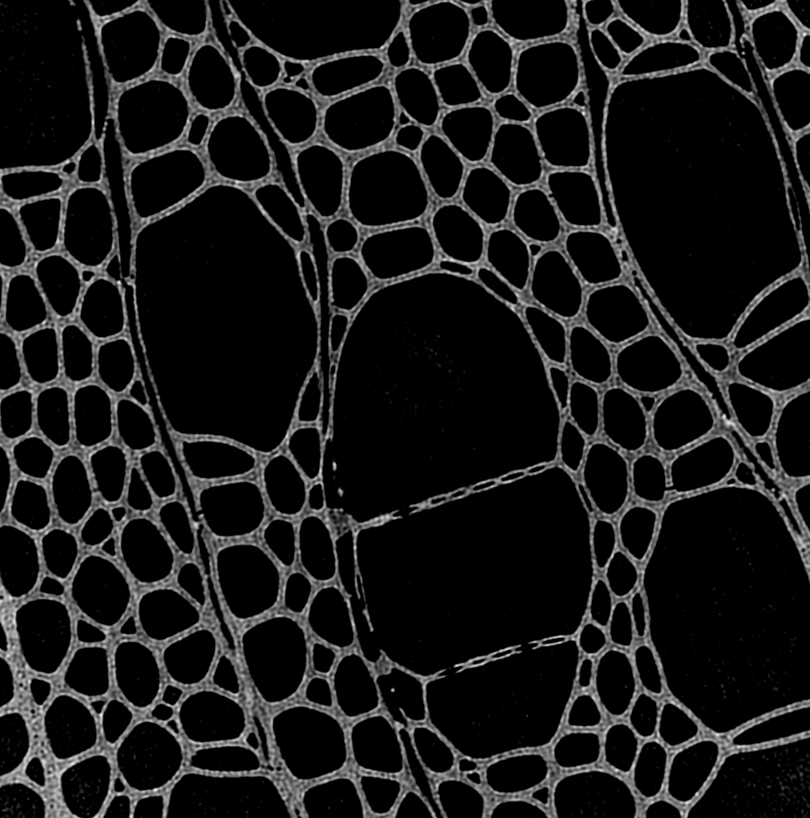

Phase contrast removal


High resolution in X-Ray µCT generally means the occurrence of small-angle scattering also known as phase contrast artefacts, especially with low absorbing materials. Phase signal contributions are no longer negligible regarding the X-Ray absorption, resulting in a new contrast phenomenon that offers edges enhancements, but a lower absorption contrast between phases.

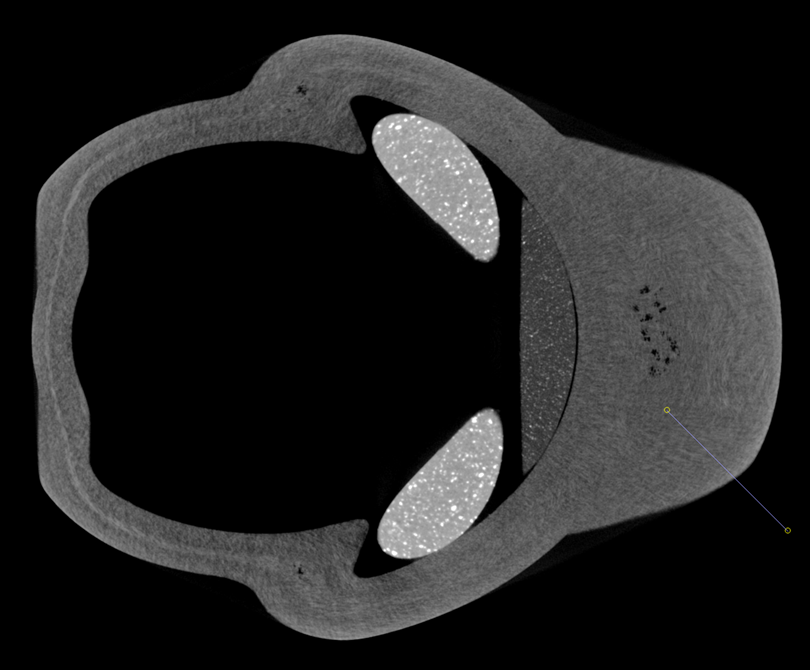

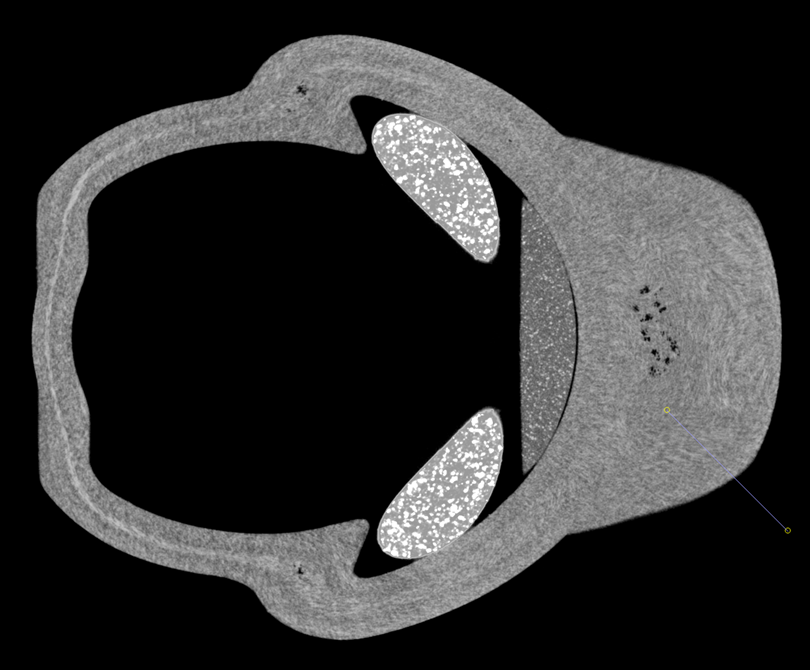

Beam hardening correction


This correction allows you remove beam artefacts from your component without having a proper spectrum estimation.

It's a user-guided algorithm offering a simple way to compute the estimated absorption photons curve and correct the image deviation.

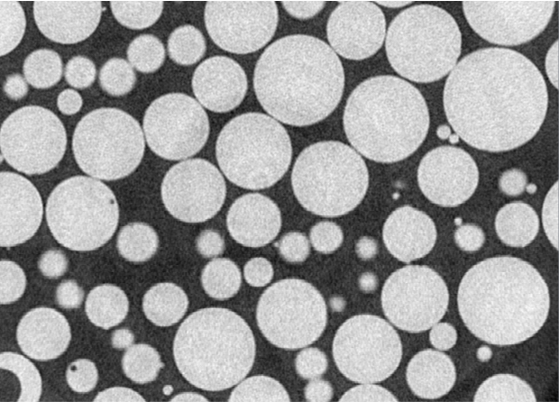

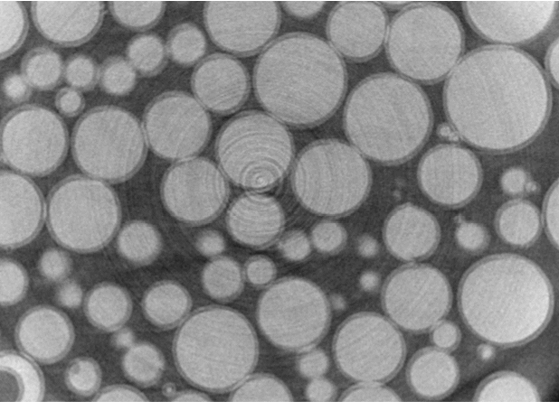

Ring artefacts removal


Ring artefacts result from a non-linear response of the detector which generates circular artefacts centered on the rotation axis.

This correction works directly on the projections and preserves the image features/resolution.

2 RELEASES PER YEAR
KEEPING X-ACT UP TO DATE

Our team is continuously working to provide customers with the best X-Act experience by focusing on high-level image processing and tomographic reconstruction. X-Act is improved with innovations, especially developed to enhance capabilities, increase speed or release features the industry has never seen before. Since the beginning, the flexible spirit behind X-Act has been kept, making this software a perfect CT tool for every application.
