easytom l

Extreme performances in a compact and versatile CT system. New inspection opportunities for industry and scientific research.

A Compact and Versatile Industrial X-ray CT System

The EasyTom L is designed from the ground up to meet the demanding requirements of a wide range of 3D imaging applications in both industry and academic sectors. Perfectly suited for every stage of a part's life cycle, the EasyTom L facilitates a seamless transition from materials research and R&D applications to production and quality control. It fits through standard doors for easy installation in your laboratory or production site while offering a large scan volume and great versatility.

No Compromise: Combine Micro & Nano CT scanning in a Single Machine

The EasyTom L can evolve with you. Its larger cabinet and optimized stage accommodate a dual-tube configuration allowing for both high-energy micro-focus and nano-focus functionality in a single system. This unparalleled versatility makes the EasyTom L capable of seamlessly switching between scanning large parts to conducting ultra-high-resolution analysis down to 0.4 µm without the need for timely and expensive modification to the system. With the option of adding a secondary tube or additional imagers at a later date, the EasyTom L CT system offers industry and academia considerable flexibility and can be customized to meet your specific needs.

X-Act, RX Solutions' Software for the Control, Acquisition, and Reconstruction

Our exclusive software: "X-Act" is continuously enhanced with new features, setting new standards in processing power and delivering unrivaled image quality across our entire range of RX Solutions CT scanners.
With the EasyTom L, you get an optimized computed tomography experience. Our software not only simplifies data acquisition, but also streamlines reconstruction thanks to advanced correction algorithms. Additionally, "X-Act" offers complete automation from acquisition to post-processing, enhancing every stage of the process.
With the EasyTom L, immerse yourself in an optimized computed tomography experience. Our software not only simplifies data acquisition, but also the reconstruction phase thanks to advanced correction algorithms. "X-Act" offers complete automation, from acquisition to post-processing, thus optimising every stage of the process.

easytom L

ComfortableL FlexibilityL CompactL QualityL

Designed to meet DEMANDING manufacturers requirements

The EasyTom L has been designed to support manufacturers at every stage of a product's life cycle. From prototyping to troubleshooting, there are no compromises.Thanks to a wide range of optimization and feature configurations, the EasyTom L can meet the most demanding requirements essential to your success.




Rapid scans:

It is often said that “time is money”.This is especially true in a production line. With this in mind, RX-Solutions tomography systems offer 14 different scan modes for exceptionally fast, high-quality scans to suit your needs.



Intuitive operator experience and automation:

The operator interface via our X-Act software is intuitive and offers an enhanced user experience.We make it easy to navigate through our machines’ advanced features. You can control and automate your scans and processes with ease, saving time and improving inspection in both the prototyping and inspection phases.



Sample loader, automatic filter changer and motorized doors:

The EasyTom L streamlines your scanning workflows using a sample loader and automated filter changer.Designed for intensive use, these optional upgrades to the system allow you to automate scans for a series of parts and even extend the machine’s scanning time beyond regular working hours.Additionally, the EasyTom L’s large, motorized doors accommodate smooth, efficient robotic loading for further automation versatility.



High-energy 300 kV microfocus:

With the EasyTom L, you can use a high-energy micro-focus X-ray generator up to 300 kV.Higher energy ensures exceptional X-ray penetration allowing for inspection of denser and thicker parts at resolutions down to 4µm!This functionality makes the EasyTom L ideal for additive manufacturing, foundry, automotive, and even aerospace sectors.



Granite base, dimension control, heat control and high-ends components:

The EasyTom L’s granite base offers incomparable structural stability, guaranteeing consistent, reliable, and accurate results.The system’s metrology-grade configuration allows for dimensional inspection of your scanned parts under all conditions. Temperature control inside the cabinet and X-ray tubes maintains optimum conditions, mitigating effects of thermal expansion on your parts that could negatively impact scan quality.The integrated top-quality components of the EasyTom L ensure its consistent performance and long-term durability.



Large scanning volume :

With a large internal volume for a compact system, the EasyTom L can scan parts at a wide range of sizes, from the smallest stent to the bulkiest aluminum casting.. Its versatility is exceptionally high for a CT system of its size. .



Robust, reliable, low maintenance:

Designed for exceptional durability and extensive use, the EasyTom L is both robust and reliable.It requires minimal maintenance which keeps costs under control. The use of integrated high-voltage generators, for example, removes the need for maintenance associated with high-voltage cables. Additionally, our maintenance packages ensure that components are changed in advance and that software solutions and features are always up to date, reducing the risk of unexpected downtime.

In addition, our maintenance packages ensure that components are changed in advance, reducing the risk of unexpected downtime, and that software solutions and features are always up to date.

 Designed for top-level academic research

EasyTom L is an extremely versatile CT scanner with a host of features designed for academic research.



Very high resolution : up to 0.4µm:

High-resolution tomography is an essential tool for researchers, biologists, and engineers working on materials for which the internal micro-structure is key to understanding the processes involved in the mechanical behavior of the material.Equipped with a nano-focus tube, the EasyTom L enables you to achieve exceptional scan resolution down to 0.4µm.Ultra-high precision mechanics give you the ability to consistently make highly detailed scans at nanoscopic scale.



Precision mechanics on anti-vibration damping systems:

Thanks to precision granite mechanics combined with high-quality anti-vibration damping systems, the EasyTom L CT system ensures stable and reproducible experimental conditions. This combination ensures consistency and quality in all your analyses and their results. .



Very large glass doors & large internal volume for complex experiments:

The EasyTom L is designed to facilitate complex experiments.Its large internal volume allows for a wide variety of experimental set-ups without restrictions. Its large glass doors provide optimum visibility and easy set-up of experiments while allowing real-time observation and immediate interaction with samples.With the EasyTom L you can depend on continuous and effective monitoring of your research work.



Dedicated access ports and easy fixturing for cables and tubing:

The EasyTom L makes it easy to organize your experiments.The system features dedicated access points for painless routing of cables and tubing ensuring smooth connectivity and convenient set-up of your experimental devices. The design includes a rotating stage through which cables and hoses can be easily guided to your devices. Strategically placed mounting points on the frame and ceiling increase the flexibility of your experimental setup, allowing you to adjust the arrangement to precisely meet the specific needs of each investigation.



Optional In-Situ stress cells:

Optional in-situ stress cells are available to study the behavior of materials under specific mechanical or heat stress conditions. This feature further extends the possibilities of your experiments, offering a more in-depth and targeted approach. .



Variable source-detector distance and multiple detectors:

The EasyTom L is exceptionally adaptable. It is capable of varying the distance between the source and detector= up to 1000 mm. The system is also able to accommodate and interchange a wide range of detectors including planar imagers and high-resolution cameras. You can adjust these parameters to meet the specific needs of each experiment, providing versatility and optimum quality in a single system.



A computed tomography system for researchers:

Openness and creativity are at the heart of RX-Solutions CT systems.Standard file formats, the ability to interface the software and system via script, and access to our API allow for unequaled flexibility and customization when synchronizing with experimental devices. You can intervene and create at every stage of tomographic investigation with unrivaled freedom. .



Multiple X-rays tubes and detectors in a scalable system:

The EasyTom L can accommodate a micro-focus generator (max resolution 2µm), a nano-focus generator (max resolution 0.4µm), or both. If your needs evolve over the years, the system has been designed to allow a second tube to be installed directly at your site, combining versatility and upgradability. Switching from one tube to the other takes just a few seconds, at the touch of a button.

In the same way, you can add and easily interchange new imagers to your system according to your needs and as imager technology advances.



technical
data

  • Top performance: Very high spatial resolution 0.4µm (Jima)
  • Ergonomic: Large glass doors for easier loading and greater visibility. Lowered loading point. Open door adjustments
  • Flexible: Wide choice of high-performance, wide-field, high resolution detectors. Several detectors in a single unit
  • Easy integration: Compact CT scanner - Length 2.4m x Width 1.2m - Height: 2m - integrated high-voltage generators and control station.
  • Large scanning volume: Up to Ø450 x 640 mm. Up to 9 moving axes. Motorized detector-tube distance.
  • High-precision mechanics: Granite base, anti-vibration damping, linear encoders, internal heat control.
  • Powerful: Up to 300 kV, single or dual tubes, micro and nano-focus
  • Easy maintenance: Robust design and components. No high-voltage cables to maintain. Easy maintenance access door.
  • User friendly: Motorized centering stage, automatic filter changer. Switch from one tube to another and from one detector to another in less than a minute, without any calibration.
  • Efficiency: High-speed scans, automation from scanning to analysis, sample loader for increased autonomy, motorized door for robotic loading.
  • Designed for in-situ experiments : Large interior volume, cable and pipe feedthrough chicanes, numerous attachment points, mechanical and thermal stress cells.
<espacement>



Flexible
and powerful

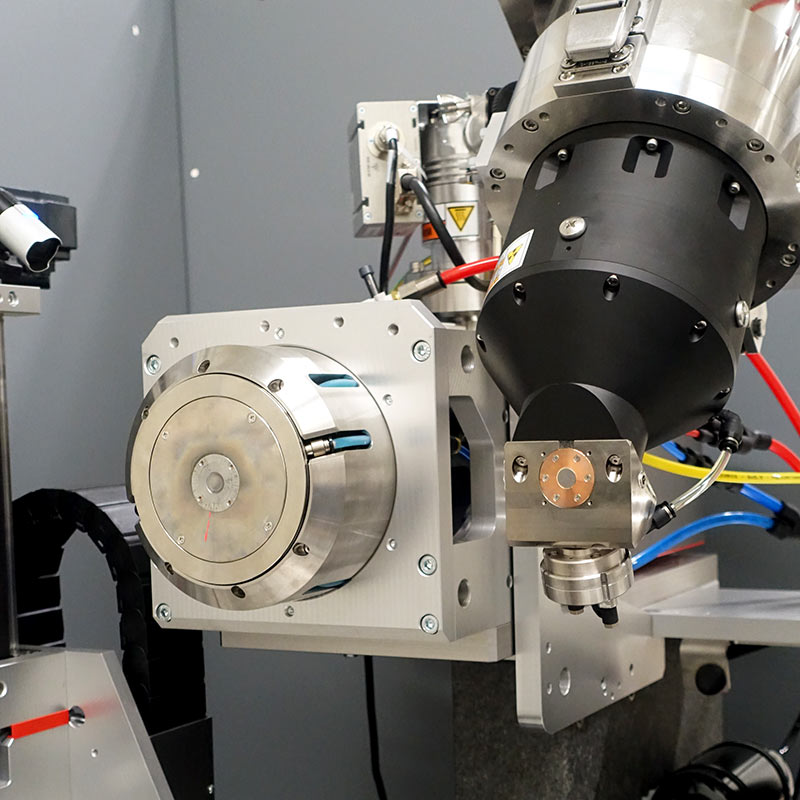

Versatile CT system

Switch from a micro-focus scan to a nano-focus scan in just 2 seconds with a signle click. Change your detector as easily as you install your parts on the centering stage. Everything has been designed to offer you an X-ray machine that seamlessly adapts to your needs over time.

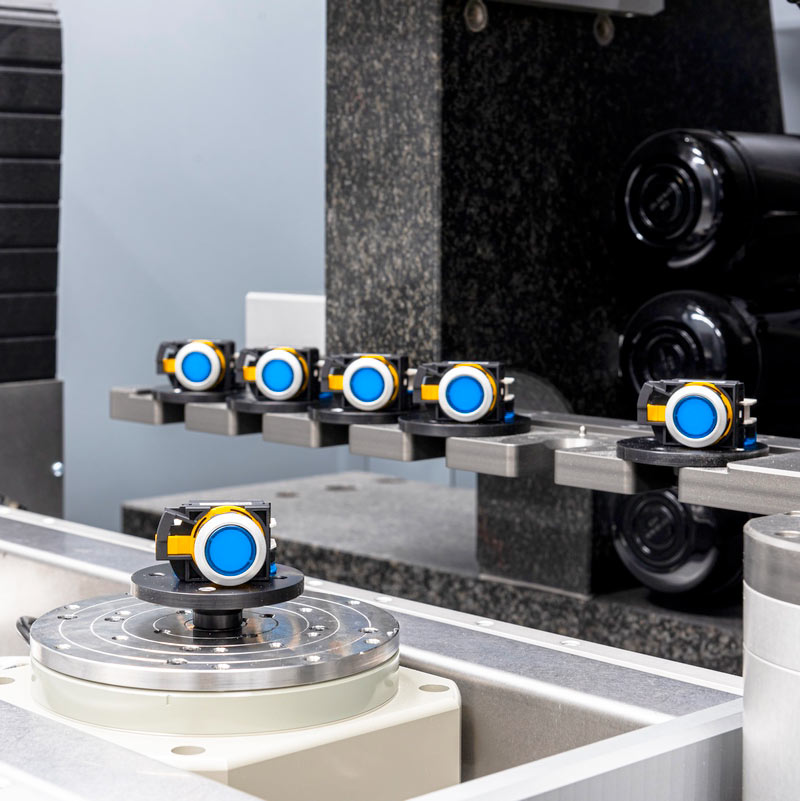

Sample loader

Need to scan numerous parts while optimizing your time? Discover the sample loader. It can also be coupled with a loading robot to maximize the industrialization of your inspection process and thus extend your scanning times outside the operators' hours on-site

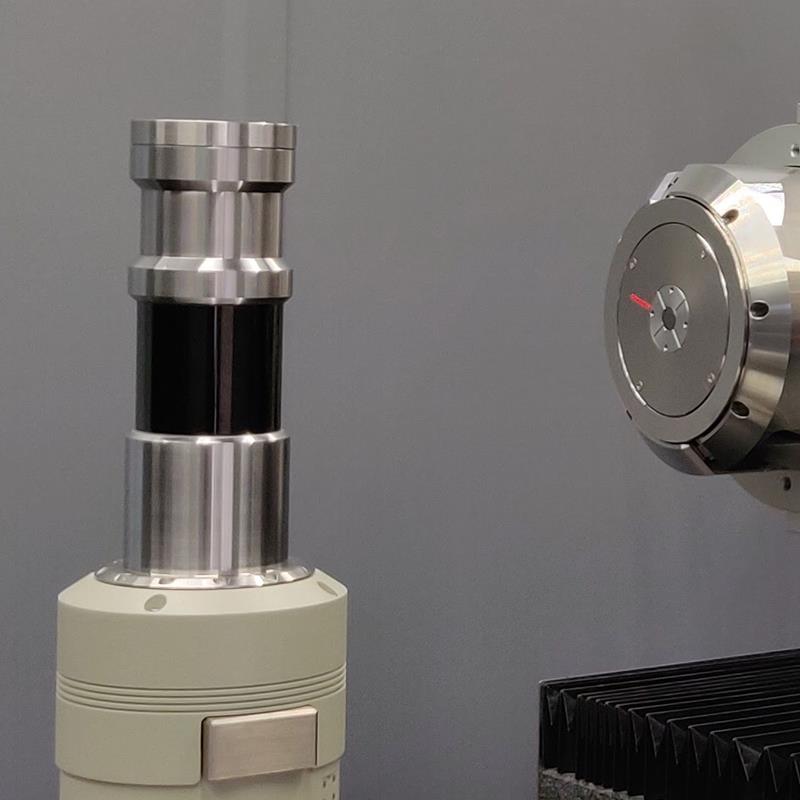

In Situ experiments

Thanks to its large internal volume and cable feedthrough chicanes, you can easily perform in-situ experiments on your samples. Due to the machine's design and integrated software optimization facilitates the integration of modules.

Versatile CT system

Switch from a micro-focus scan to a nano-focus scan in just 2 seconds with a signle click. Change your detector as easily as you install your parts on the centering stage. Everything has been designed to offer you an X-ray machine that seamlessly adapts to your needs over time.

Sample loader

Need to scan numerous parts while optimizing your time? Discover the sample loader. It can also be coupled with a loading robot to maximize the industrialization of your inspection process and thus extend your scanning times outside the operators' hours on-site

In Situ experiments

Thanks to its large internal volume and cable feedthrough chicanes, you can easily perform in-situ experiments on your samples. Due to the machine's design and integrated software optimization facilitates the integration of modules.




Make the invisible visible with X-ray tomography

With the EasyTom L, we are proud to offer a three-dimensional analysis system equipped with cutting-edge technology that exceeds expectations.  Combining exceptional image quality, reduced environmental impact, and unmatched versatility, the system ensures remarkable scanning speed while providing optimal comfort for the operator.  Compact yet maintaining a large scanning volume, the EasyTom L is ready to meet the most demanding needs of users.


grand-volume-scan

A compact design but greater scanning volume:



The EasyTom L is a compact computed tomography scanner and can therefore be installed almost anywhere. Its compact design does not sacrifice its scanning ability.  It offers a large scan volume up to a maximum Ø of 450 mm and a maximum height of 640 mm. Whether it’s wide, high, or dense workpieces, with the EasyTom L the possibilities are constantly expanding.

polyvalence
Optimized user experience


The EasyTom L is a three-dimensional inspection machine designed to be versatile enough to adapt to all industries, sectors, and all requirements. That's why we've made it simple to operate.  For example, you can switch from micro-focus to nano-focus scanning with a single click and switch from one detector to another in just one minute.  Using cutting-edge technology also means optimizing efficiency and use. This saves time, labor, and cost, which, of course, is essential for manufacturers when it comes to inspecting parts.

Rapidite
Faster scanning & better quality


Built on a high-precision granite base, the EasyTom L offers optimum sub-micro performance. Thanks to a 1000 mm SDD and a 3-axis moving detector, you can carry out simple scans more rapidly. A larger SDD means you can scan larger parts, maintain a wider field of view, achieve even greater magnification, and experience less cone beam artifacts.

Ecologie
Reduced environmental footprint


Cutting-edge technology doesn't mean we don't have the environment at heart. That's why at RX Solutions, we're all working together to reduce our carbon footprint. For our products, this means using recycled lead, working with local partners, reconditioning sealed tubes, and designing and manufacturing our systems locally. To take our commitment to the environment a step further, the EasyTom L has an integrated standby mode, enabling judicious use of resources and significant energy savings.



Roland Le Floc’h, Product Manager : « The EasyTom L is the result of nearly 20 years of optimization and feedback from RX-Solutions in the field of high-resolution tomography. We have succeeded in combining a wide range of functions in this medium-sized cabin, some of which were previously reserved for larger cabins. The challenge was to satisfy both the requirements of industry and the need for ultimate performance and flexibility in the world of academic research. Our engineers succeeded, and the result lives up to our expectations. »

<espacement>




X-ACT : RX Solutions software for scan acquisition and reconstruction

Discover the power of X-Act, all-in-one software: from system settings to 3D scan reconstruction.


Designed by the RX Solutions team, X-Act is our exclusive software for optimizing the inspection of your samples with precision. X-Act offers much more than just an easy-to-use interface for acquiring and reconstructing your 3D scans. It's a fully integrated solution with an ergonomic interface that's regularly updated and incorporates a whole range of advanced features to deliver quality results for all types of samples.

Thanks to its 14 acquisition modes, X-Act's features make it an intuitive, high-performance solution for industrial and academic settings. :



Step by Step Scan

.

Continuous fast scan

.

Limited angles scan

.

Variable angles scan

.

Vertical extension stack scan

.

Horizontal extension imageur shift

.

Virtual centering

.

Step by Step Scan

.

Continuous fast scan

.

Limited angles scan

.

Variable angles scan

.

Vertical extension stack scan

.

Horizontal extension imageur shift

.

Virtual centering

.

Region of Interest local scan

.

Global scan and focused scan

.

Laminography

.

Anti-ring shift

.

Vertical extension Helical scan

.

Tomo 6-pass

.

4D-CT

.

Region of Interest local scan

.

Global scan and focused scan

.

Laminography

.

Anti-ring shift

.

Vertical extension Helical scan

.

Tomo 6-pass

.

4D-CT

.

Our software also features automatic calibration and stabilization functions as well as real-time artifact correction, addressing common reconstruction issues such as beam hardening and common artifacts seen in metallic and circular features.


X-Act also features a customizable user experience with 3 user modes. Whether you're an expert in computed tomography and our software, a regular user wishing to benefit from a guided scan, or a beginner discovering computed tomography and our software step by step, thanks to the 'wizard' mode, X-Act offers the flexibility you need to complete all your scans.

By using X-Act on a day-to-day basis for your scans, you'll benefit from intuitive, accurate and efficient inspection that's perfectly adapted to your CT system. Develop your approach to industrial tomography with cutting-edge technology from RX Solutions.




rx solutions
TRAINING - sUPPORT & services

Training - Support & Services

When you choose an RX Solutions X-ray scanner, you get much more than just a CT system and advanced technology. Our commitment starts from the first contact and extends to our extensive training, support, and after sales services, ensuring you get the most out of your inspection system from start to finish.



Full training: Our team will be with you from the moment you plan to buy your CT scanning machine right through to the moment you actually get the system up and running. We always include 2 training sessions, a basic session to introduce you to the machine and X-Act and a more advanced training session a few months later when you've had plenty of time to master the basics of tomography. The aim of all this is to ensure that you have the best possible knowledge and use of your X-ray system.



Technical Support: Take advantage of our expert remote assistance. We're here to answer your questions and help you solve your hardware and/or software problems, ensuring that your computed tomography system runs smoothly from the moment you set it up and throughout the life of your EasyTom L.



Maintenance Packages: Avoid unplanned outages with our preventive and corrective maintenance packages. Our team will keep your system up to date and running smoothly, with regular upgrades to take advantage of the latest features developed by RX Solutions.



Continuous improvement: We are committed to constantly improving the performance of your software and your system. Thanks to these regular updates, we can guarantee you the best possible user experience when it comes to inspecting and monitoring your samples.


With RX Solutions, avoid unnecessary downtimes, extend the life of your system, and maximize your return on investment. Choose excellence in industrial tomography and benefit from the expertise of our team committed to your success.
