easytom xl

Industrial Micro & Nano Computed Tomography System

Industrial Micro & Nano Computed Tomography System

The EasyTom XL CT Scanner is the largest standard system in our range. The large scanning volume allows for unparalleled inspection of very large objects.  This powerful CT System is designed to address the most challenging 3D applications ranging from material research to industrial applications in R&D, quality assurance and production. With this very large scanning volume, it is now possible to visualize, measure and analyze with high resolution large components or assemblies, up to 600 mm in diameter and 720 mm in height.



No compromise: Combine High Power Micro & High Resolution Nano X-ray tubes

EasyTom XL is the only step-in cabinet allowing a combination of high power and high-resolution X-Ray sources: nano focus 160 kV & micro focus 230 kV. The ability to house an X-Ray tube of up to 230kV means thicker and denser samples can also be inspected. With an ultimate resolution down to 0.4 µm and multiple generators & detectors choices, EasyTom XL gives sharp details and the balanced contrast and brightness needed for high quality imaging even at low energy levels.



 Flexible X-ray solution

Thanks to the large wide door opening, the system facilitates easy access to the rotation stage and optimizes the sample positioning. The 9 motion axes allows easier positioning of parts as well as the ability to hold samples of up to 80kg or more. This greater flexibility of parts positioning and adjustable distance between the source and the detector, leads to easier, faster and higher quality acquisitions. Both the imager and the tube can be shifted allowing the inspection of even larger parts.



A powerful X-ray software

Proprietary "X-Act" software delivers powerful results and breakthrough image quality across the entire RX Solutions' range of CT Systems. EasyTom XL integrates the full featured “X-Act” software suite, that streamlines acquisition, enhances reconstruction with advanced corrective algorithms, and is capable of fully automated workflow all the way through scanning, reconstruction, and inspection steps.







easytom xl

Ergonomics Scan Upgradable

technical
data

  • Top performance: Outstanding CT resolution 4 µm
  • Flexible: Large inspection volume with multiple axes (ø 600 mm x 720 mm) height with 9 mechanical axes
  • Finest stability: First-class mechanics for long-term stability
  • Powerful: Multiple micro-focus tube configurations up to 230 kV

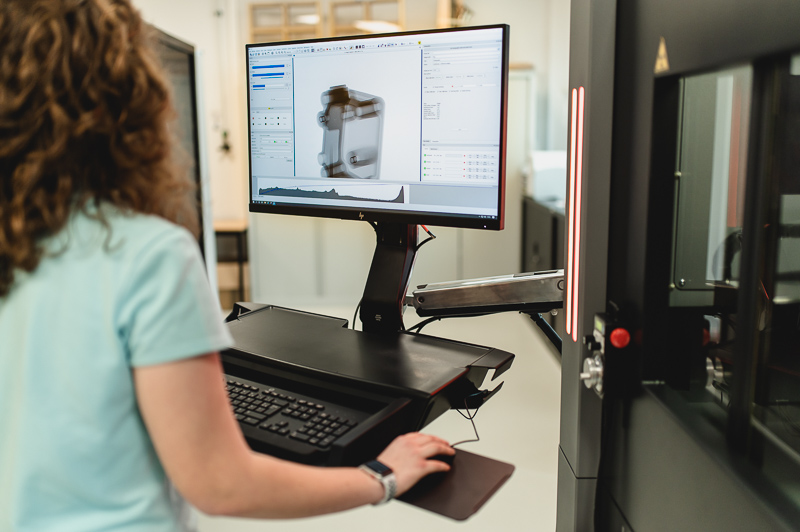

  • User friendly: Large screen and ergonomic standing station. Large door for easy part loading.
  • Automation: Fully automated part-to-measure workflow
  • Easy Maintenance: High-grade X-ray sources – sealed and open tube technologies for reduced system downtime
  • Safe: Fully shielded cabinet. No need for personal dosimeter.
<espacement>



multifunctional
and freely configurable

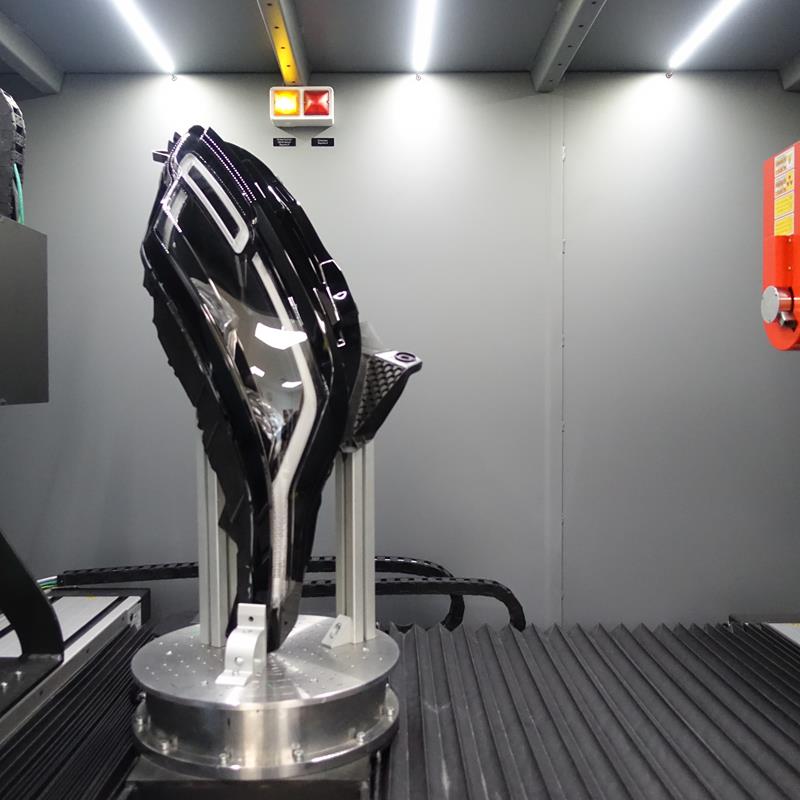

Large scanning volume

The large scanning volume of the system offers unparalleled inspection of sizable objects.

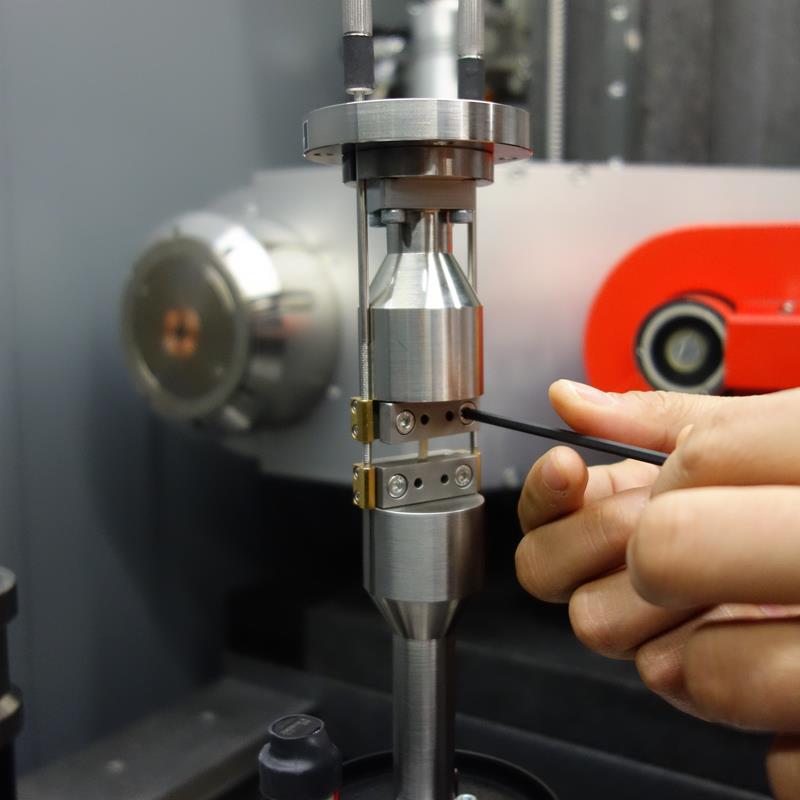

In-situ experiments

Large internal volume and pass-through ports, ideal to host and control stages used for In situ scans.

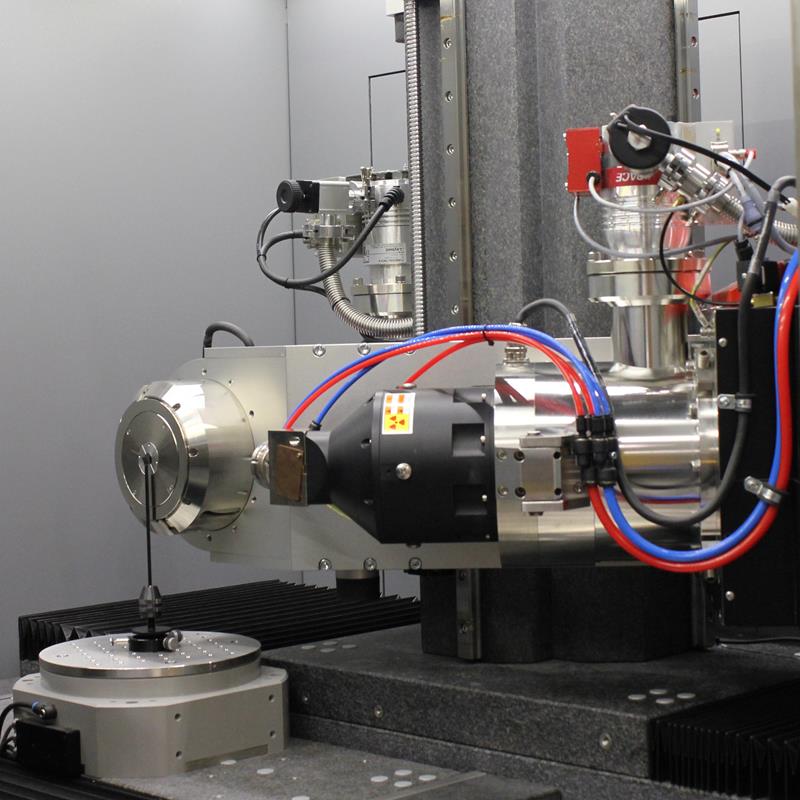

High power & resolution

Both fast and high resolution scans can be executed in one equipment system with an instantaneous switch between micro & nano.

Large scanning volume

The large scanning volume of the system offers unparalleled inspection of sizable objects.

In-situ experiments

Large internal volume and pass-through ports, ideal to host and control stages used for In situ scans.

High power & resolution

Both fast and high resolution scans can be executed in one equipment system with an instantaneous switch between micro & nano.

<espacement>


X-Act logiciel pour tomographie


X-act : Integrated Software for Acquisition and reconstruction

Explore the Performance of X-Act: your all-in-one Solution for 3D Acquisitiond and Reconstruction

Developed by the highly experienced teams at RX Solutions in France, X-Act stands as our exclusive software designed to optimize the inspection of your samples. Going beyond a mere interface for 3D scan acquisition and reconstruction. X-Act is a global solution with an ergonomic interface that is constantly being optimised and incorporates numerous advanced features to guarantee quality results, whatever the type of sample you want to scan.

X-Act's features make it both intuitive and powerful, offering a variety of acquisition modes, including:


· Conventionnel
· Hélicoïdal
· Laminographie
· Shift & Stack



The X-Act software provides with automatic functionalities such as calibration, stabilization, and real-time artifact correction, also addressing aspects like beam hardening, metal artifacts, and circular artifacts.



X-Act is designed to be adaptable to every users, which is why it offers three user modes, for a customizable user experience. From CT’s experts fully leveraging our software to regular users seeking guided acquisition, and even beginners stepping into tomography step by step with the "wizard" mode, X-Act provides the flexibility to successfully conduct daily scans and part inspections.

Formation, support, maintenance RX Solutions

rx solutions
TRAINING - sUPPORT & services

Comprehensive Support - Training, & Maintenance

Collaborating with RX Solutions goes beyond having an advanced CT scanner. Our partnership begins from the initial discussions and extends through our comprehensive training, support, and maintenance services, ensuring optimal use of your X-ray CT system throughout the machine’s lifecycle.



In-Depth Product Training:

From the time you plan to purchase your Industrial CT scanner system, right through to system commissioning, our teams are here to support you. We schedule two training sessions: an initial session to familiarize you with the machine and X-Act once your machine is delivered, followed by a more advanced training a few months later when you have gained a good understanding of the tomograph. The goal is toensure you have the knowledge you need to use and maintain your EasyTom XL in the best possible way.



Dedicated Support Team:

Benefit from telephone assistance and remote support with our technical experts. We are here to answer all your questions and solve issues related to the machine and/or software, ensuring optimized operation of your industrial CT scan from installation throughout its lifecycle.



Maintenance Contracts:

Avoid unexpected downtime, unplanned part replacements, etc., with our maintenance contracts. Our team ensures the performance of your system is maintained and kept up-to-date with regular upgrades, allowing you to benefit from the latest features developed by RX Solutions.



Continuous Optimization:

At RX Solutions, collaboration and listening to your feedback are in our DNA. That's why we are constantly improving the performance of our X-ray CT systems and the X-Act software. Through regular updates, we guarantee the best possible user experience when scanning your parts.
