RX Solutions introduces the Metrology Series

by on 26 Jan 2026 at 15h25

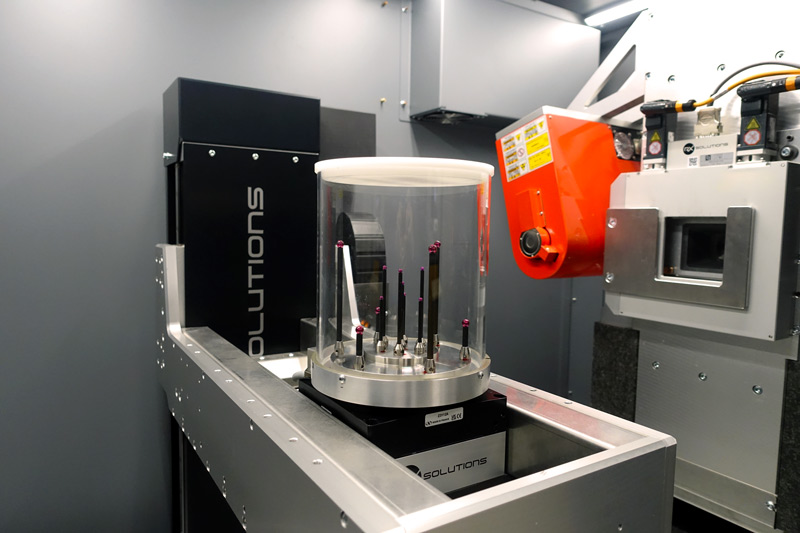

Metrologie industrielle par tomographie

Metrology Series : CT systems specialized for industrial metrology


RX Solutions, a leader in high‑resolution industrial computed tomography, unveils the Metrology Series:  CT systems optimized for 3D dimensional metrology to meet the requirements of industry and research.
Currently available on the EasyTom S and the EasyTom L, platforms, these specialized configurations are designed for all industries from quality control laboratories, R&D centers, to production sites (aeronautics, medical, batteries…), where accuracy, repeatability, and traceability are essential.


An architecture engineered for mechanical stability

The Metrology Series delivers a complete solution for non‑destructive dimensional inspection, enabling access to both external surfaces and internal structures in a single acquisition. Each system guarantees accuracy according to VDI/VDE 2630‑1.3 standard, leveraging three technological pillars:

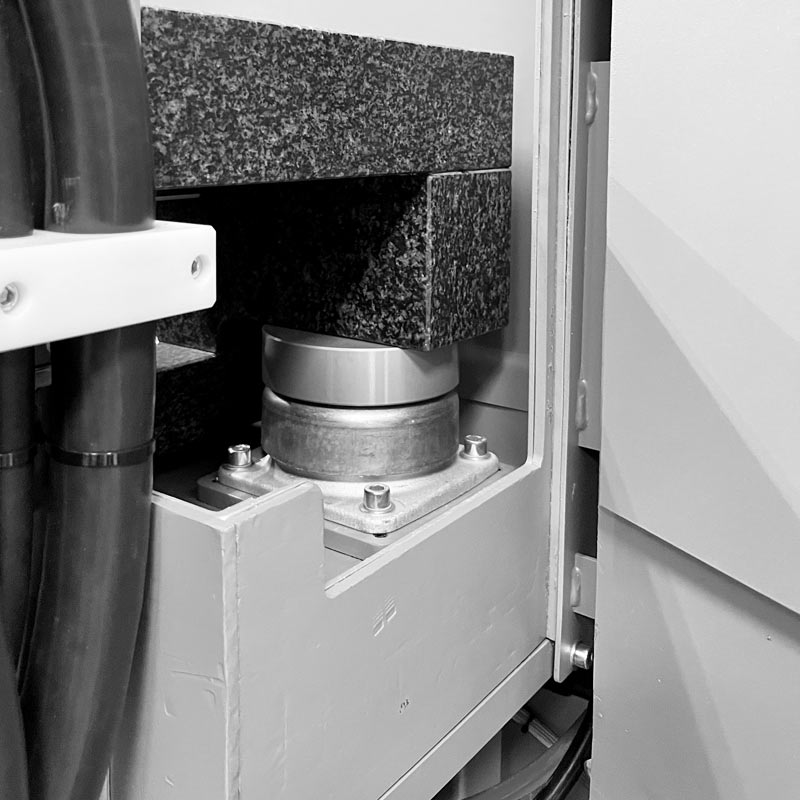

  • Precision mechanics: massive granite base and advanced vibration damping
  • Integrated thermal regulation (±0.5°C): ensures measurement reproducibility all day long. No deformation due to too high or low temperature inside the system
  • High‑resolution linear encoders: repeatable positioning and geometric traceability

High-resolution linear encoders

Integrated thermal regulation

Precision mechanics

High-resolution linear encoders

Integrated thermal regulation

Precision mechanics

Guaranteed compliance and traceability

Each Metrology Series system is characterized according to VDI/VDE 2630‑1.3 standard with an MPE_SD:

  • EasyTom S: 5.5 μm + L/50
  • EasyTom L: 5.5 μm + L/50 (25x32) | 6 μm + L/50 (43x43)

This MPE_SD relies on calibrated reference tools (multi‑sphere gauges) and validated calibration procedures


A dedicated software ecosystem

Beyond mechanical performance, the Metrology Series is supported by a specialized software suite:
  • Advanced sub‑pixel detector distortion correction
  • Automatic magnification factor scale calibration
  • High‑quality STL export: compatible with metrology software workflows


 The versatility of a CT system without compromise

  1.  Global material analyses  : dimensional analysis, internal defect detection, multi‑material assemblies, additive manufacturing components…
  2. Versatility: a single machine for metrology, material inspection, CAD comparison, assembly analysis, porosity evaluation, and more
  3. Productivity: millions of 3D points captured in a single scan, without complex programming
  4. Traceability & compliance: certified calibration, performance monitoring, and compliance with industrial standards
Unlike tactile or optical CMM solutions, metrological CT offers a unique advantage: the ability to simultaneously inspect external geometries, internal cavities, assemblies, and porosities — all in one non‑destructive scan.
“ With the Metrology Series, we provide industrials and researchers with an uncompromising dimensional inspection tool, combining certified accuracy, application versatility, and ease of integration. It is a key milestone in democratizing CT metrology and supporting the transformation of manufacturing and quality control processes.” — Roland Le Floc’h, Product Manager at RX Solutions
