HORUS

Advanced reconstruction module

Horus - Reconstruction tomographie avancée
Horus - Reconstruction tomographie avancée

Horus

Improve the quality of your CT reconstructions without having to upgrade your CT system.

Horus is our advanced reconstruction software, directly integrated with your X-Act software.

Horus brings a major improvement in reconstructed image quality, especially for:
  • Metallic parts
  • Multi-material components
  • Hard-to-penetrate (highly attenuating) parts


    • Example of typical applications for Horus :

    • Electro-Mechanics assemblies Metal/plastic connectors
    • Electronic boards and PCBs
    • Metrology
    • Casting
    • Aerospace turbine blades
    • Medical devices (injector pens, pacemakers, stents)
    • Sprayers and pumps (plastic/spring assemblies)
    • Metal additive manufacturing

    HORUS Performance gains, without system upgrade

    Horus significantly improves reconstructed image quality and metrological measurement accuracy on your RX Solutions system-without any hardware upgrades. By reducing artifacts and improving contrast and homogeneity, it optimizes reconstruction while enabling shorter scans with fewer projections.

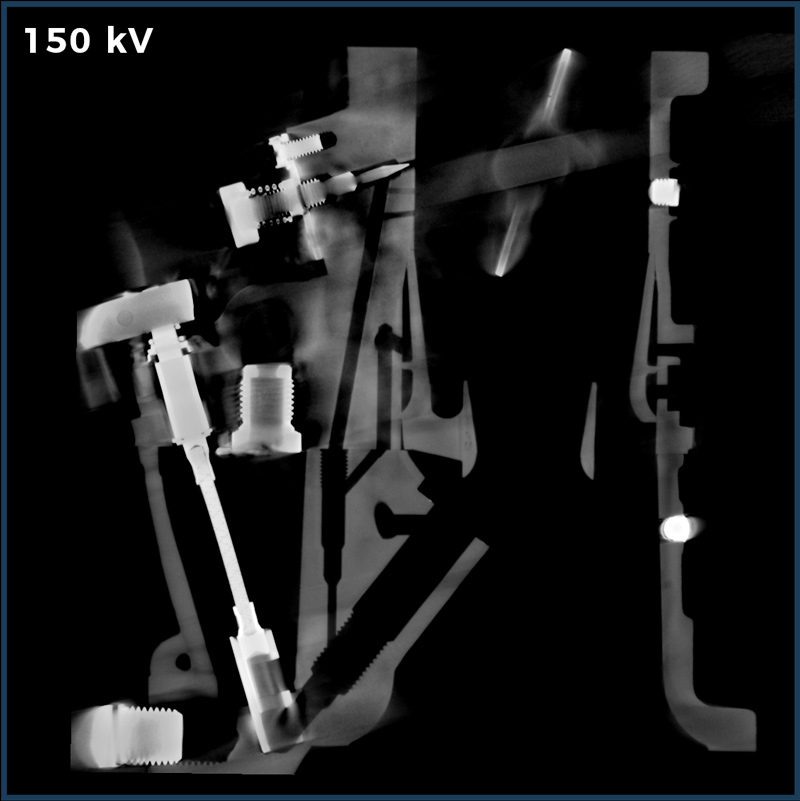

    Reconstruction X-Act carburateur - Scan 150 kV

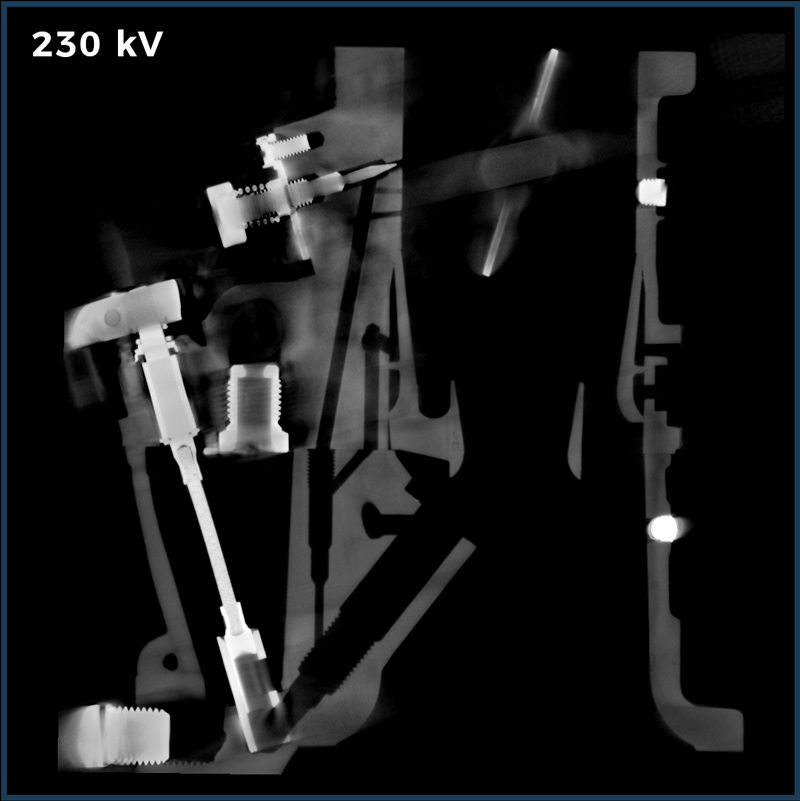

    Reconstruction X-Act carburateur - Scan 230 kV

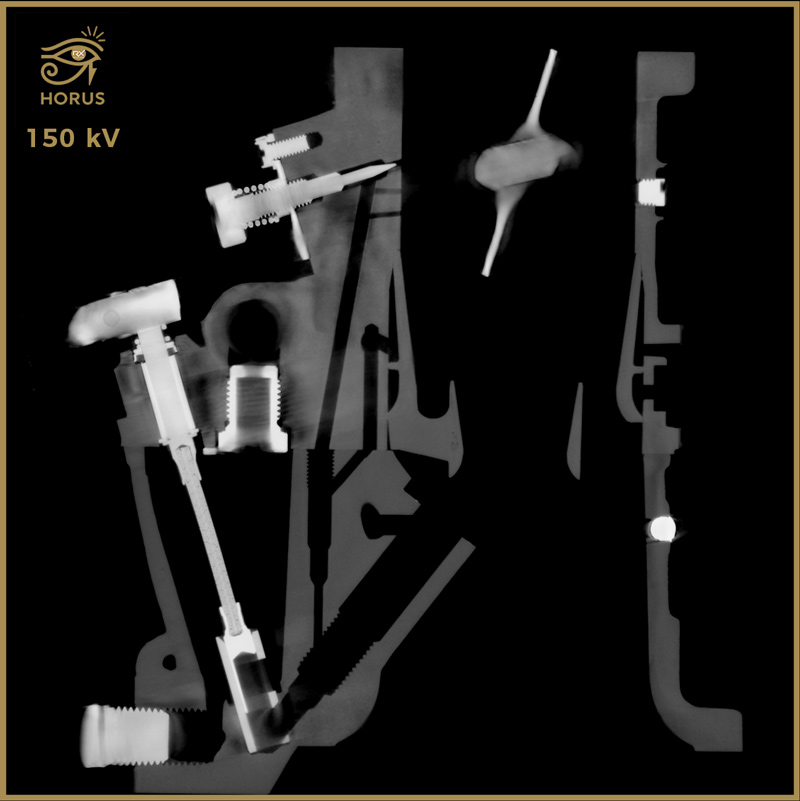

    Reconstruction Horus carburateur - Scan 150 kV

    Reconstruction X-Act carburateur - Scan 150 kV

    Reconstruction X-Act carburateur - Scan 230 kV

    Reconstruction Horus carburateur - Scan 150 kV

    Horus
    Advanced reconstruction, even on challenging parts



    CT inspection of multi-material, metallic or highly attenuating components represents a major challenge in non-destructive testing. Traditional algorithms reach their limits when faced with these demanding configurations, producing degraded images and numerous artifacts that compromise dimensional analysis and defect detection.


    Thanks to its advanced algorithms, Horus drastically reduces artifacts and improves contrast, transforming difficult raw data into usable images ready for  analysis.



    Metal parts

    High X-ray absorption generates noise and artifacts.

    Multi-material assemblies

    Differences in attenuation create overexposed or underexposed areas.

    Highly attenuating components

    Beam hardening and scattering degrade image quality.


    Standard reconstruction with X-Act
    Visible artifacts, limited contrast
    Horus reconstruction ✓
    Reduced artifacts, optimized contrast
    Horus - Reconstruction tomographie avancée
    Horus - Reconstruction tomographie avancée

    HORUS
    Reduce your scanning time

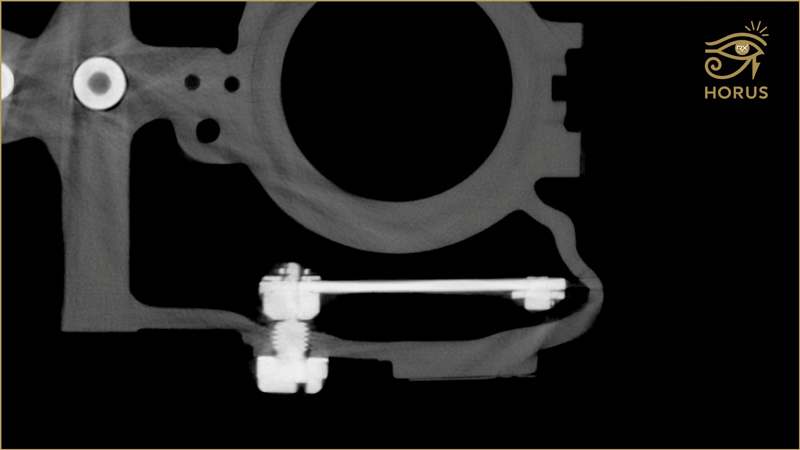

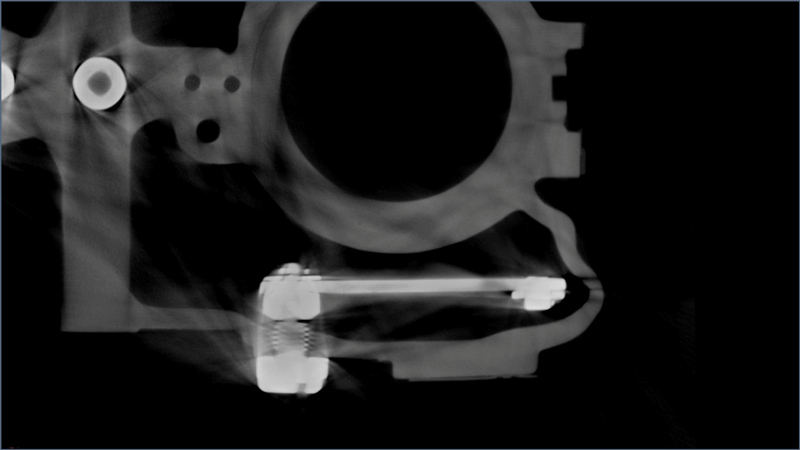

    Horus' advanced algorithms drastically reduce your acquisition time. With only 25% of the usual projections, you can obtain image quality equal or even superior to that of a scan using 100% of the projections, with an X-Act fast reconstruction. By dividing your acquisition times, you turn your CT system into a real production tool.

    Integrated into X-Act

    How to use Horus ?
    1.Load
    Import your dataset into X-Act
    2. Choose Horus
    Choose Horus High Quality Reconstruction.
    3. Reconstruction
    Select your parameters, start your reconstruction
    • ✓No new software
    • ✓Minimum training
    • ✓User friendly
    Compatibility & licenses
    • System Compatibility : All RX Solutions CT systems
    • Software requirements: X-Act 25.09 up-to-date
    • Horus Solution: add-on activated in X-Act, 1 license / reconstruction computer
    • Support : RX Solutions




    Download the brochure





    HORUS - USER CASES

    Horus - Reconstruction tomographie avancée
    Horus - Reconstruction tomographie avancée

    Aerospace blade

    450 kV - 84 µm
    Horus - Reconstruction tomographie avancée
    Horus - Reconstruction tomographie avancée

    Pompe flacon multi-matériaux

    100 kV - 30 µm
    Horus - Reconstruction tomographie avancée
    Horus - Reconstruction tomographie avancée

    Mettalic turbine

    450 kV - 78 µm
    Horus - Reconstruction tomographie avancée
    Horus - Reconstruction tomographie avancée

    Disjoncteur multi-matériaux

    150 kV - 11 µm
    Horus - Reconstruction tomographie avancée
    Horus - Reconstruction tomographie avancée

    Impression 3D - Métal

    225 kV - 102 µm

    FREQUENTLY ASKED QUESTIONS

    Does Horus require a hardware upgrade?

    No, your CT system does not need to be modified or upgraded. However, depending on your PC configuration, reconstruction may be slow or even fail. We recommend at least a reconstruction PC with an RTX 5070 Ti graphics card and 256 GB of RAM.

    Is my X-Act interface changed?

    The interface remains the same. Fewer optimization tabs are available when you select Horus for reconstruction, but otherwise your interface is unchanged.

    Can I reduce the number of projections?

    Yes: during acquisition, you can reduce the number of projections and thus save scan time. Horus allows you to achieve equivalent quality results with fewer projections.

    Which CT systems are compatible with Horus?

    All our CT systems are compatible for using Horus in X-Act during reconstruction (EasyTom S/L/XL/Ultratom, etc.). Only the reconstruction PC may be too old to allow Horus to reconstruct properly.

    Any impact on metrology?

    A sharper and more homogeneous reconstruction stabilizes segmentation and naturally leads to more reliable measurements.

    Do I need to update X-Act?

    Yes, Horus is only available starting from the latest X-Act update, version 25.09. Previous versions do not support its use.
