easytom

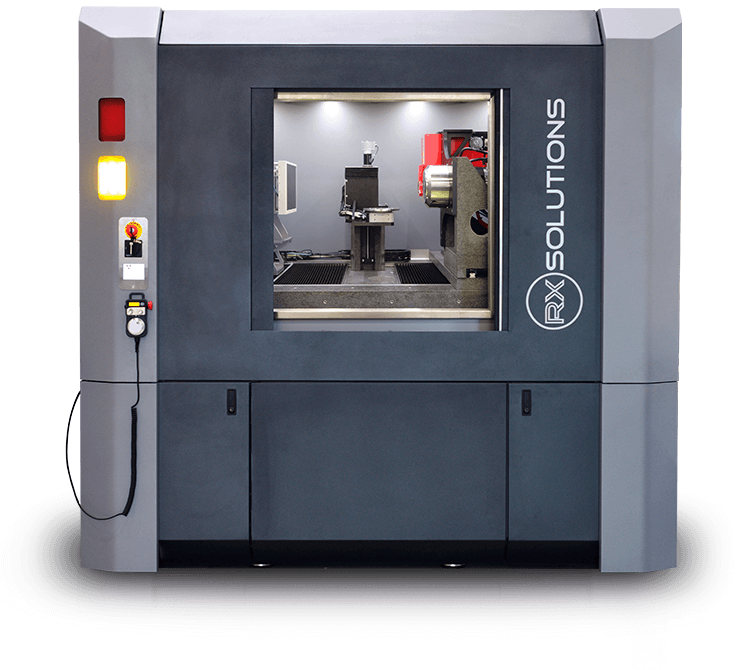

High-end CT system - 3D X-ray Micro & Nano Measurement and Analysis System

Industrial Micro & Nano Computed Tomography System

The RX Solutions EasyTom is a powerful CT System designed to address the most challenging 3D applications ranging from material research to industrial applications in R&D, quality assurance and production. With this large scanning volume but compact footprint, it is now possible to visualize, measure and analyze, with high resolution, large components or assemblies, up to 320 mm in diameter and 530 mm in height.

No compromise: Combine High-Resolution Micro & Nano X-ray Computed Tomography

With an ultimate resolution down to 4 µm and multiple generators & detectors choices, EasyTom gives sharp details and the balanced contrast and brightness needed for high quality imaging even at low energy.

Flexible X-ray solution

Thanks to the large wide doors opening, the system facilitates easy access to the rotation stage and optimizes the sample positioning. The 9 motion axes allow easier positioning of parts as well as the ability to scan samples of up to 30kg weight. This greater flexibility of parts positioning and adjustable distance between the source and the detector, leads to easier, faster and higher quality acquisitions.

A powerful X-ray software

Proprietary "X-Act" software delivers powerful results and breakthrough image quality across the entire RX Solutions' range of CT Systems. EasyTom integrates the full featured “X-Act” software suite, that streamlines acquisition, enhances reconstruction with advanced corrective algorithms, and is capable of fully automated workflow all the way through scanning, reconstruction, and inspection steps.


easytom

technical
data

  • Top performance: Outstanding CT resolution 0.4 µm
  • Flexible: Large inspection volume with multiple axes (ø 320 mm x 530 mm) height with 9 mechanical axes
  • Finest stability: First-class mechanics with granite axes for long-term stability
  • Powerful: Multiple micro & nano focus tubes configurations up to 230 kV
  • Easy integration: Medium-size footprint CT system (H. 2000 mm / W. 2200 mm / D. 1114 mm)
  • User friendly: Large screen and ergonomic standing station. Large leaded windows on the front side of the system.
  • Modular design: Tomography at a sub-micron scale or both micron and sub-micron: single or dual tube configurations
  • Automation: Automated part-to-measure workflow
  • Lab CT system: Designed for in situ experiments
  • Easy Maintenance: High-grade X-ray sources – sealed and open tube technologies for reduced system downtime
<espacement>



Flexible
and powerful

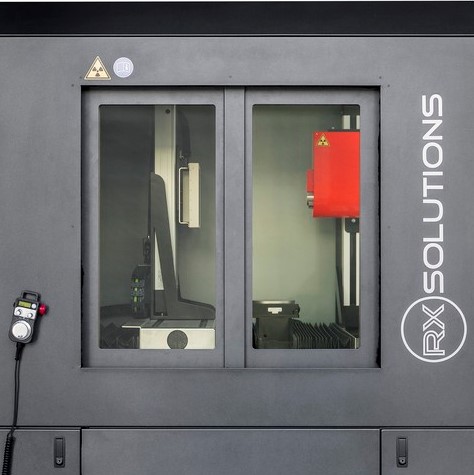

Large leaded windows

Large leaded windows on the front side allow a direct view during the setup and scan of the sample.

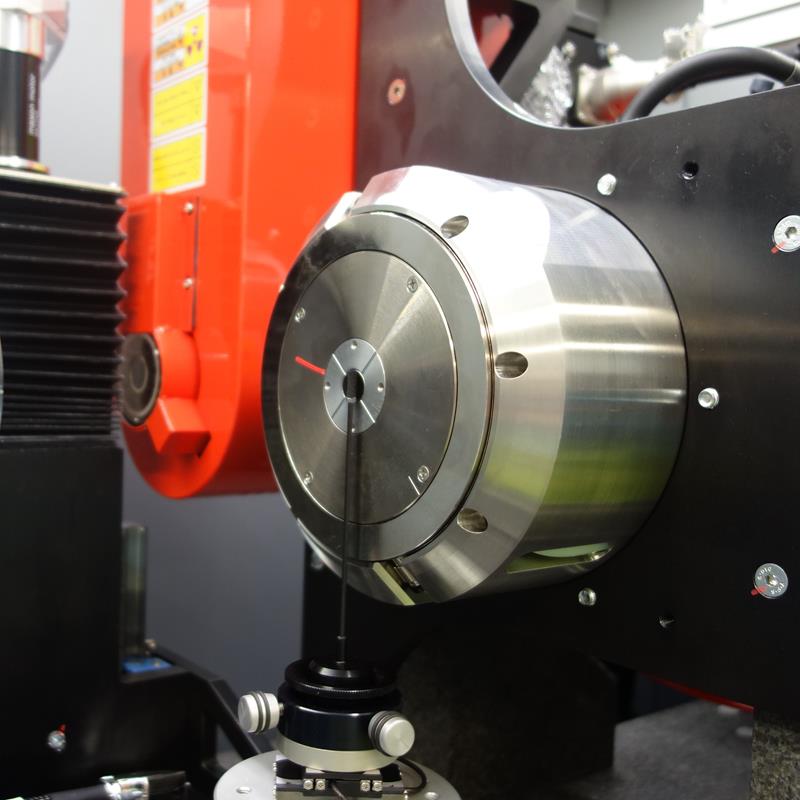

Dual tube configuration

No compromise: combine high resolution and high power micro and nano X-ray computed tomography.

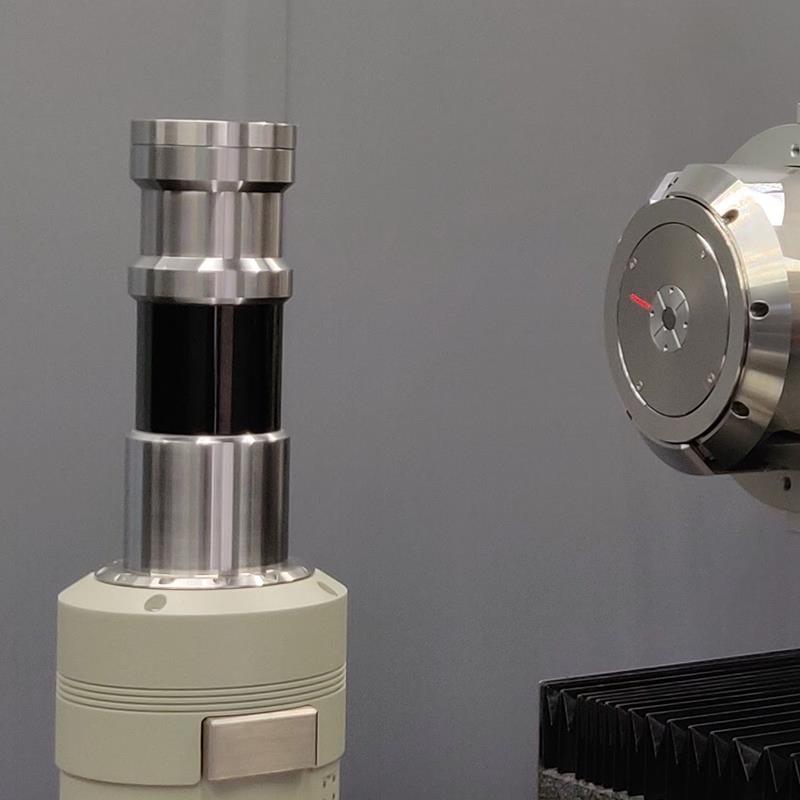

In-situ design

Large internal volume design for: tensile, compression, bending & temperature testing devices.

Large leaded windows

Large leaded windows on the front side allow a direct view during the setup and scan of the sample.

Dual tube configuration

No compromise: combine high resolution and high power micro and nano X-ray computed tomography.

In-situ design

Large internal volume design for: tensile, compression, bending & temperature testing devices.

<espacement>

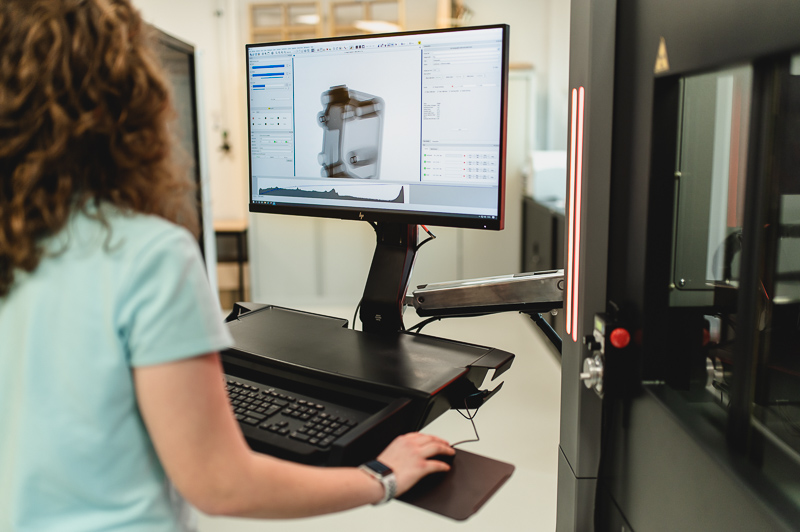

X-act : a powerful software
radioscopy, Acquisition & Reconstruction

From CT system configuration to 3D CT rendering, everything is combined in one single software

The X-Act software integrates an ergonomic interface that allows the inspection of your samples with precision. It is an acquisition and reconstruction software that integrates many features to get the best results for any sample.

As an intuitive solution, its main features are multiple acquisition modes (conventional, helical, laminography, shift & stack), automatic calibration and stabilization, real-time artefact correction (beam hardening, metal artefacts, circular artefacts...) and three user modes adaptable to the user experience (expert mode, guided acquisition mode and wizard mode).

rx solutions
TRAINING - sUPPORT & services

Training - Support & Services

Our Services Team will support you from system planning and installation to system operation and maintenance. They will provide you with basic and expert training, with hot line support and remote assistance and with comprehensive preventive and corrective maintenance contracts.

We will ensure that your CT system is kept upgraded with the latest functionalities we develop, to enhance its performance and to better serve your applications. Our Services Team will help prevent unnecessary downtime and extend the lifetime of your CT system to maximize your return on investment.
